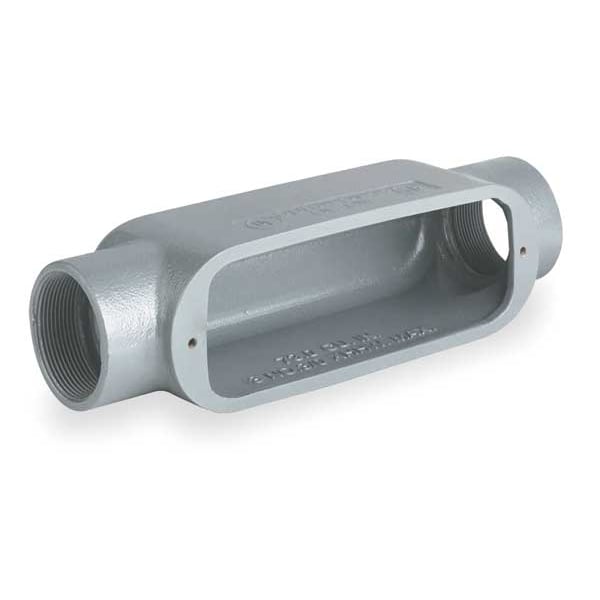

Conduit Outlet Body, Iron, 1-1/4 In.
| Item | Conduit Outlet Body |
|---|---|
| Conduit Outlet Body Type | Conduit Outlet Body |
| Hazardous Location | Yes |
| Hub Size | 1-1/4 |
| Series | O Series |
| Conduit Outlet Body Material | Iron |
| Conduit Outlet Body Style | C |
| Material | Iron |
| Conduit Outlet Body Capacity | 32 cu in |
| Conduit Outlet Body Hub Size | 1-1/4 in |
| Includes | Stainless Steel Screws |
| Conduit Outlet Body Hub Style | Threaded |
| For Use With | IMC, RMC |
| Special Features | Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Volume is 32 cu. in. |
| Color | Gray |
| Conduit Outlet Hub Size | 1-1/4 in |
| Back Type | Flat |
| Standards | CSA, UL |
| Form | Form 85 |
| Hazardous Location Rating | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| Finish | Powder Epoxy Paint |
| Body Style | C |
| Hub Style | Threaded |
| Thread Gender | Female |
| Trade Size | 1-1/4 in |
| Connection Type | Threaded |
| Thread Size | 1 1/4 in |
| Compatible Conduit Type | RMC, IMC |
| Shape | C |
| Thread Type | NPT |
| Compatible Cover | OL-45M |
| Overall Height | 3 in |
| Connection Orientation | Straight |
| Compatible Conduit Trade Size | 1-1/4 in |
| Number of Hubs | 2 |
| Overall Width | 3 in |
| Body Type | Conduit Outlet Body |
| Overall Length | 10 in |
| Body Capacity | 32 cu in |
| Width | 3 in |
| Height | 3 in |
| Length | 10 in |
| CSA File Number | LR11852 |
| Type | Conduit Body |
| Dimensions | 10 in x 3 in x 3 in |
| Pallet Quantity | 576 |
| Each - Width | 3 in |
| Hazardous Rating(s) | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| Hub Pattern | C |
| Carton Quantity | 2 |
| UL File Number | E3397 |
| Application | To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC. |
| Finish Type | Powder Epoxy Paint |
| Package Net Weight | 2.79 |
| Package Quantity | 1 |
