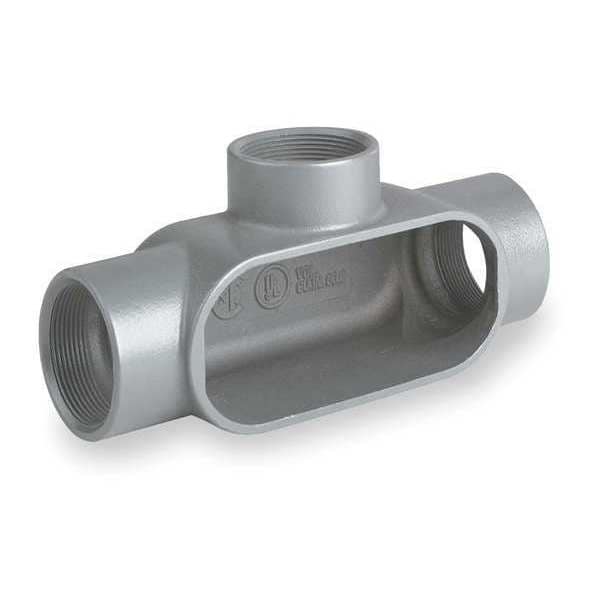

Conduit Outlet Body, Iron, 1-1/4 In.
| Item | Conduit Outlet Body |
|---|---|
| Conduit Outlet Body Type | Conduit Outlet Body |
| Hazardous Location | Yes |
| Hub Size | 1-1/4 in |
| Series | Duraloy 7 |
| Conduit Outlet Body Material | Iron |
| Conduit Outlet Body Style | T |
| Material | Iron |
| Conduit Outlet Body Capacity | 20 cu in |
| Conduit Outlet Body Hub Size | 1-1/4 in |
| Conduit Outlet Body Hub Style | Threaded |
| For Use With | IMC, RMC |
| Special Features | Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl |
| Conduit Outlet Hub Size | 1-1/4 in |
| Back Type | Flat |
| Color | Gray |
| Standards | CSA, UL |
| Form | Form 7 |
| Body Style | T |
| Trade Size | 1-1/4 in |
| Number of Hubs | 3 |
| Connection Orientation | Multi-Angle |
| Body Type | Conduit Outlet Body |
| Body Capacity | 20 cu in |
| Compatible Conduit Trade Size | 1-1/4 in |
| Hub Style | Threaded |
| Hazardous Location Rating | Class I Zone 2, Class I, Division 2 |
| Overall Length | 8 in |
| Compatible Conduit Type | RMC, IMC |
| Overall Height | 3 in |
| Shape | T |
| Thread Type | NPT |
| Thread Gender | Female |
| Finish | Powder Coated |
| Compatible Cover | 470G |
| Overall Width | 4 in |
| Connection Type | Threaded |
| Thread Size | 1 1/4 in |
| Length | 8 in |
| Height | 3 in |
| Width | 4 in |
| Type | Conduit Body |
| Application | To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC. |
| Dimensions | 8 in x 4 in x 3 in |
| Hazardous Rating(s) | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| Finish Type | Powder Epoxy Paint |
| CSA File Number | LR11852 |
| UL File Number | E3397 |
| Each - Width | 4 in |
| Hub Pattern | T |
| Package Quantity | 1 |
