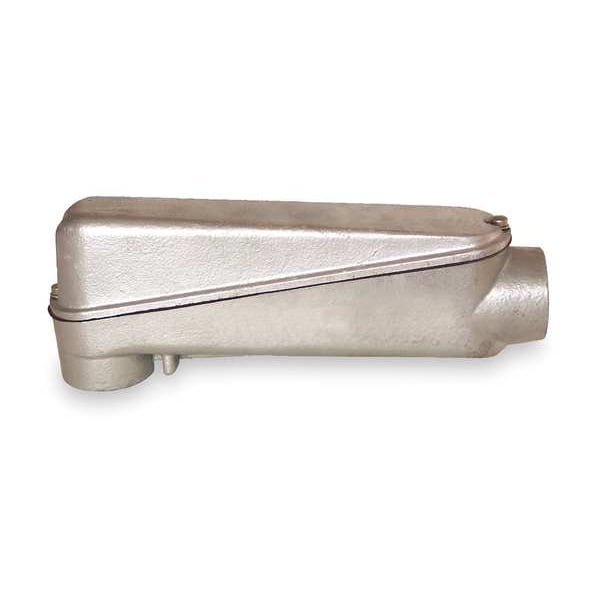

Conduit Outlet Body, Iron, 2-1/2 In.
| Conduit Outlet Body Type | Conduit Outlet Body |
|---|---|
| Item | Conduit Outlet Body |
| Hazardous Location | No |
| Hub Size | 2-1/2 |
| Series | Moguls |
| Conduit Outlet Body Material | Iron |
| Conduit Outlet Body Style | LB |
| Material | Iron |
| Conduit Outlet Body Capacity | 742.5 cu in |
| Conduit Outlet Body Hub Size | 2-1/2 in |
| Conduit Outlet Body Hub Style | Threaded |
| For Use With | IMC, RMC |
| Special Features | A raised dome cover permits additional wiring room. Furnished with captive ss screws and gasket. Volume is 319 cu. in. |
| Color | Glossy gray |
| Back Type | Flat |
| Standards | UL |
| Conduit Outlet Hub Size | 2-1/2 in |
| Form | Form 85 |
| Finish | Powder Epoxy Paint |
| Body Style | LB |
| Body Type | Conduit Outlet Body |
| Overall Length | 21 in |
| Connection Orientation | 90 Degrees |
| Hub Style | Threaded |
| Thread Gender | Female |
| Number of Hubs | 2 |
| Compatible Conduit Type | RMC, IMC |
| Compatible Conduit Trade Size | 1/2 in |
| Overall Height | 8 in |
| Thread Type | NPT |
| Connection Type | Threaded |
| Overall Width | 10 in |
| Body Capacity | 742.5 cu in |
| Shape | LB |
| Gasket Included | Yes |
| Trade Size | 2-1/2 in |
| Thread Size | 2 1/2 in |
| Cover Included | Yes |
| Height | 8 in |
| Length | 21 in |
| Width | 10 in |
| Finish Type | Powder Epoxy Paint |
| Dimensions | 21 in x 10 in x 8 in |
| Each - Width | 10 in |
| Package Net Weight | 46.5 |
| Hub Pattern | LB |
| Hazardous Location Rating | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| Hazardous Rating(s) | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| Type | Conduit Body With Cover & Gasket |
| Application | Mogul fittings are for use with rigid and IMC raceways. Use where standard conduit bodies do not provide adequate access and wiring area for the pulling of large and heavy conductors. For right angle bends where splices, pulls, and taps are needed in a we |
| Package Quantity | 1 |
