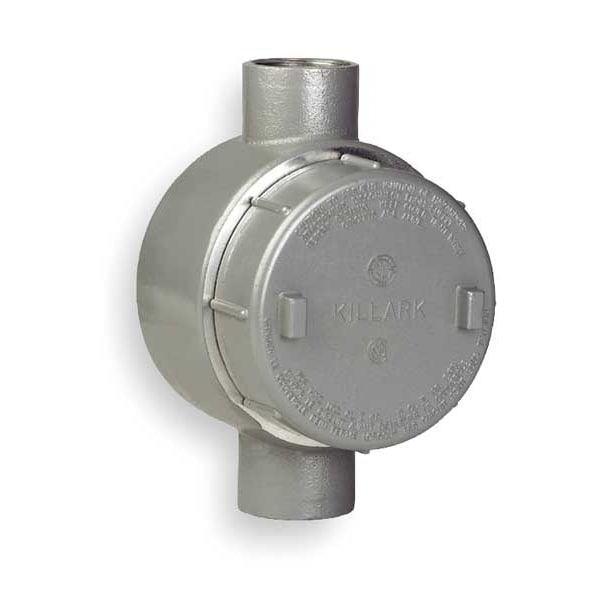

Conduit Outlet Body, Iron, C, 3/4 In.
| Conduit Outlet Body Type | Conduit Outlet Body |
|---|---|
| Item | Conduit Outlet Body |
| Hazardous Location | Yes |
| Hub Size | 3/4 |
| Series | GE |
| Conduit Outlet Body Material | Iron |
| Conduit Outlet Body Style | C |
| Material | Iron |
| Conduit Outlet Body Capacity | 19 cu in |
| Conduit Outlet Body Hub Size | 3/4 in |
| Includes | Grounding Screw |
| Conduit Outlet Body Hub Style | Threaded |
| For Use With | RMC |
| Special Features | Internally Threaded Cover Openings |
| Standards | UL |
| Conduit Outlet Hub Size | 3/4 in |
| Color | Gray |
| Back Type | Flat |
| Form | Form 1 |
| Finish | Powder Epoxy Paint |
| Body Style | C |
| Overall Width | 5-7/8 in |
| Compatible Cover | 2GOU, 4GOU, GECBCB, GECBCM, GECEY |
| Body Capacity | 19 cu in |
| Shape | C |
| Trade Size | 3/4 in |
| Hazardous Location Rating | Class I, Divisions 1 and 2, Groups C, D, Class I, Zones 1 and 2, Groups IIB, IIA |
| Connection Orientation | Straight |
| Thread Type | NPT |
| Thread Size | 3/4 in |
| Thread Gender | Female |
| Hub Style | Threaded |
| Overall Length | 5-7/8 in |
| Body Type | Conduit Outlet Body |
| Compatible Conduit Trade Size | 3/4 in |
| Overall Height | 4-3/8 in |
| Connection Type | Threaded |
| Number of Hubs | 2 |
| Compatible Conduit Type | RMC |
| Cover Included | Yes |
| Height | 4-3/8 in |
| Width | 5-7/8 in |
| Length | 5-7/8 in |
| UL File Number | E10514 |
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA |
| Application | Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes. |
| Each - Width | 5-7/8 in |
| Package Net Weight | 3.51 |
| Size | 5.875 in x 5.875 in x 4.375 in |
| CSA File Number | LR11716 |
| Dimensions | 5-7/8 in x 5-7/8 in x 4-3/8 in |
| Finish Type | Powder Epoxy Paint |
| Type | Outlet Body With Cover |
| Hub Pattern | C |
| Package Quantity | 1 |
