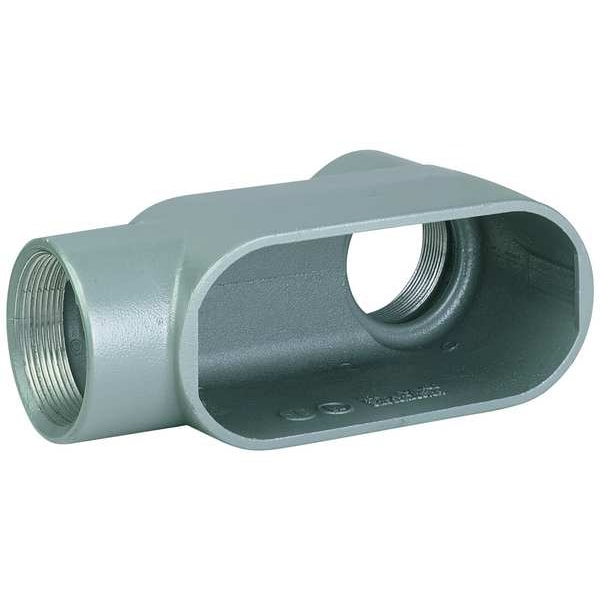

Conduit Outlet Body, Iron, LB, 3/4 In.
| Item | Conduit Outlet Body |
|---|---|
| Conduit Outlet Body Type | Conduit Outlet Body |
| Hazardous Location | Yes |
| Hub Size | 3/4 in |
| Series | Duraloy 7 |
| Conduit Outlet Body Material | Iron |
| Conduit Outlet Body Style | LB |
| Material | Iron |
| Conduit Outlet Body Capacity | 7 cu in |
| Conduit Outlet Body Hub Size | 3/4 in |
| Conduit Outlet Body Hub Style | Threaded |
| For Use With | IMC, RMC |
| Special Features | Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl |
| Color | Gray |
| Conduit Outlet Hub Size | 3/4 in |
| Back Type | Flat |
| Standards | CSA, UL |
| Form | Form 7 |
| Body Style | LB |
| Weight | 1.33 lb |
| Overall Height | 3 in |
| Thread Size | 3/4 in |
| Overall Width | 2 in |
| Thread Gender | Female |
| Number of Hubs | 2 |
| Connection Type | Threaded |
| Body Capacity | 7 cu in |
| Compatible Conduit Type | RMC, IMC |
| Thread Type | NPT |
| Hazardous Location Rating | Class I, Division 2, Class I, Zone 2 |
| Connection Orientation | 90 Degrees |
| Compatible Conduit Trade Size | 3/4 in |
| Overall Length | 6 in |
| Body Type | Conduit Outlet Body |
| Trade Size | 3/4 in |
| Shape | LB |
| Hub Style | Threaded |
| Compatible Cover | 270, 270C, 270CG, 270CGSA, 270CSA, 270G, 270GSA, 270SA |
| Finish | Powder Coated |
| Width | 2 in |
| Length | 6 in |
| Height | 3 in |
| Each - Width | 2 in |
| Type | Conduit Body |
| Application | To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC. |
| Hub Pattern | LB |
| Dimensions | 6 in x 2 in x 3 in |
| Finish Type | Powder Epoxy Paint |
| Hazardous Rating(s) | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| UL File Number | E3397 |
| CSA File Number | LR11852 |
| Package Quantity | 1 |
