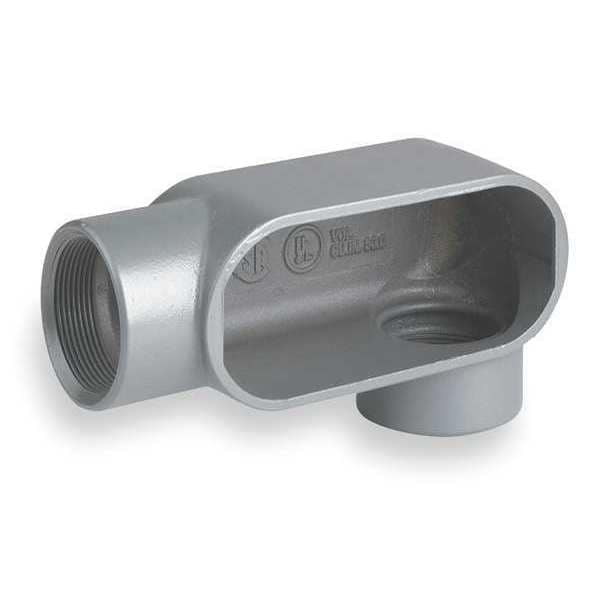

Conduit Outlet Body, Iron, LL, 1-1/4 In.
| Conduit Outlet Body Type | Conduit Outlet Body |
|---|---|
| Item | Conduit Outlet Body |
| Hazardous Location | Yes |
| Hub Size | 1-1/4 in |
| Series | Duraloy 7 |
| Conduit Outlet Body Material | Iron |
| Conduit Outlet Body Style | LL |
| Material | Iron |
| Conduit Outlet Body Capacity | 19.5 cu in |
| Conduit Outlet Body Hub Size | 1-1/4 in |
| Conduit Outlet Body Hub Style | Threaded |
| For Use With | IMC, RMC |
| Special Features | Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl |
| Color | Gray |
| Conduit Outlet Hub Size | 1-1/4 in |
| Back Type | Flat |
| Standards | CSA, UL |
| Form | Form 7 |
| Body Style | LL |
| Thread Gender | Female |
| Compatible Conduit Trade Size | 1-1/4 in |
| Shape | LL |
| Connection Orientation | 90 Degrees |
| Hazardous Location Rating | Class I, Division 2, Class I, Zone 2 |
| Overall Width | 3-3/4 in |
| Number of Hubs | 2 |
| Compatible Conduit Type | RMC, IMC |
| Thread Size | 1 1/4 in |
| Compatible Cover | 470, 470C, 470CG, 470CGSA, 470CSA, 470G, 470GSA, 470SA |
| Body Type | Conduit Outlet Body |
| Hub Style | Threaded |
| Thread Type | NPT |
| Connection Type | Threaded |
| Finish | Powder Coated |
| Overall Height | 5-1/2 in |
| Body Capacity | 19.5 cu in |
| Trade Size | 1-1/4 in |
| Overall Length | 6-7/8 in |
| Height | 5-1/2 in |
| Width | 3-3/4 in |
| Length | 6.88 in |
| Type | Conduit Body |
| Application | To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC. |
| Each - Width | 3-3/4 in |
| Hub Pattern | LL |
| CSA File Number | LR11852 |
| Hazardous Rating(s) | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| UL File Number | E3397 |
| Finish Type | Powder Epoxy Paint |
| Dimensions | 6.88 in x 3-3/4 in x 5-1/2 in |
| Package Quantity | 1 |
