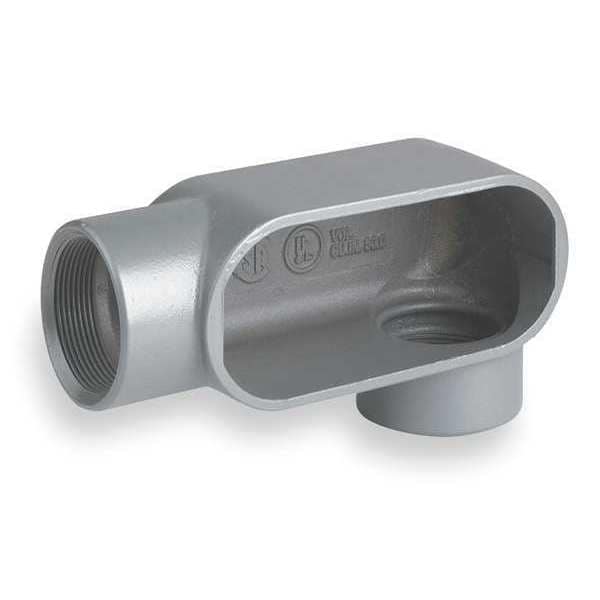

Conduit Outlet Body, Iron, LL, 1 In.
| Item | Conduit Outlet Body |
|---|---|
| Conduit Outlet Body Type | Conduit Outlet Body |
| Hazardous Location | Yes |
| Hub Size | 1 in |
| Series | Duraloy 7 |
| Conduit Outlet Body Material | Iron |
| Conduit Outlet Body Style | LL |
| Material | Iron |
| Conduit Outlet Body Capacity | 11 cu in |
| Conduit Outlet Body Hub Size | 1 in |
| Conduit Outlet Body Hub Style | Threaded |
| For Use With | IMC, RMC |
| Special Features | Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl |
| Color | Gray |
| Conduit Outlet Hub Size | 1 in |
| Back Type | Flat |
| Standards | CSA, UL |
| Form | Form 7 |
| Body Style | LL |
| Compatible Cover | 370, 370C, 370CG, 370CGSA, 370CSA, 370G, 370GSA, 370SA |
| Shape | LL |
| Thread Size | 1 in |
| Body Capacity | 11 cu in |
| Overall Height | 3-3/4 in |
| Number of Hubs | 2 |
| Hazardous Location Rating | Class I, Division 2, Class I, Zone 2 |
| Compatible Conduit Type | RMC, IMC |
| Body Type | Conduit Outlet Body |
| Thread Gender | Female |
| Trade Size | 1 in |
| Finish | Powder Coated |
| Compatible Conduit Trade Size | 1 in |
| Overall Length | 11 in |
| Overall Width | 7 in |
| Hub Style | Threaded |
| Connection Type | Threaded |
| Connection Orientation | 90 Degrees |
| Thread Type | NPT |
| Width | 7 in |
| Length | 11 in |
| Height | 3-3/4 in |
| Each - Width | 7 in |
| UL File Number | E3397 |
| CSA File Number | LR11852 |
| Type | Conduit Body |
| Application | To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC. |
| Dimensions | 11 in x 7 in x 3-3/4 in |
| Hazardous Rating(s) | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| Hub Pattern | LL |
| Finish Type | Powder Epoxy Paint |
| Package Quantity | 1 |
