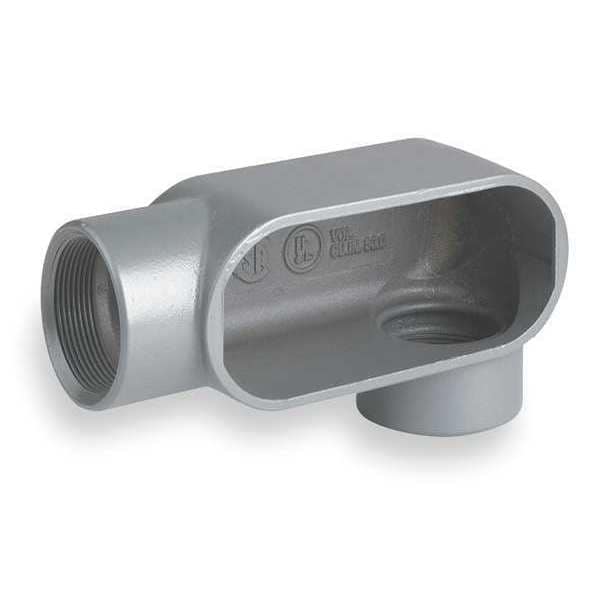

Conduit Outlet Body, Iron, LL, 1/2 In.
| Conduit Outlet Body Type | Conduit Outlet Body |
|---|---|
| Item | Conduit Outlet Body |
| Hazardous Location | Yes |
| Hub Size | 1/2 in |
| Series | Duraloy 7 |
| Conduit Outlet Body Material | Iron |
| Conduit Outlet Body Style | LL |
| Material | Iron |
| Conduit Outlet Body Capacity | 4 cu in |
| Conduit Outlet Body Hub Size | 1/2 in |
| Conduit Outlet Body Hub Style | Threaded |
| For Use With | IMC, RMC |
| Special Features | Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl |
| Color | Gray |
| Conduit Outlet Hub Size | 1/2 in |
| Back Type | Flat |
| Standards | CSA, UL |
| Form | Form 7 |
| Body Style | LL |
| Compatible Conduit Trade Size | 1/2 in |
| Shape | LL |
| Body Type | Conduit Outlet Body |
| Overall Length | 6-7/8 in |
| Compatible Cover | 170, 170C, 170CG, 170CGSA, 170CSA, 170G, 170GSA, 170SA |
| Overall Width | 3-3/4 in |
| Overall Height | 5-1/2 in |
| Thread Gender | Female |
| Connection Type | Threaded |
| Compatible Conduit Type | RMC, IMC |
| Finish | Powder Coated |
| Weight | 0.9 lb |
| Body Capacity | 4 cu in |
| Thread Size | 1/2 in |
| Thread Type | NPT |
| Hazardous Location Rating | Class I, Division 2, Class I, Zone 2 |
| Connection Orientation | 90 Degrees |
| Number of Hubs | 2 |
| Hub Style | Threaded |
| Trade Size | 1/2 in |
| Height | 5-1/2 in |
| Width | 3-3/4 in |
| Length | 6.88 in |
| Finish Type | Powder Epoxy Paint |
| Type | Conduit Body |
| Hazardous Rating(s) | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| Application | To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC. |
| Hub Pattern | LL |
| Dimensions | 6.88 in x 3-3/4 in x 5-1/2 in |
| UL File Number | E3397 |
| CSA File Number | LR11852 |
| Each - Width | 3-3/4 in |
| Package Quantity | 1 |
