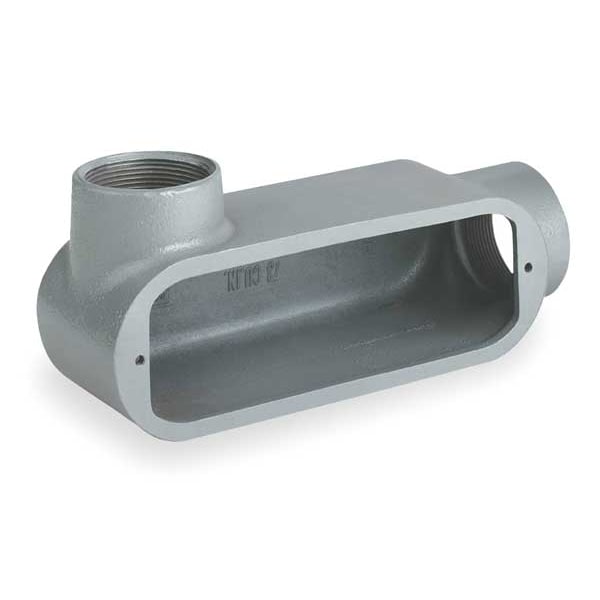

Conduit Outlet Body, Iron, LL, 1/2 In.
| Item | Conduit Outlet Body |
|---|---|
| Conduit Outlet Body Type | Conduit Outlet Body |
| Hazardous Location | Yes |
| Hub Size | 1/2 |
| Series | O Series |
| Conduit Outlet Body Material | Iron |
| Conduit Outlet Body Style | LL |
| Material | Iron |
| Conduit Outlet Body Capacity | 4 cu in |
| Conduit Outlet Body Hub Size | 1/2 in |
| Includes | Stainless Steel Screws |
| Conduit Outlet Body Hub Style | Threaded |
| For Use With | IMC, RMC |
| Special Features | Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Volume is 4 cu. in. |
| Back Type | Flat |
| Color | Gray |
| Conduit Outlet Hub Size | 1/2 in |
| Standards | CSA, UL |
| Form | Form 7 |
| Finish | Powder Epoxy Paint |
| Hazardous Location Rating | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| Body Style | LL |
| Overall Height | 1-3/8 in |
| Compatible Conduit Type | RMC, IMC |
| Thread Gender | Female |
| Body Type | Conduit Outlet Body |
| Compatible Cover | OL-10M |
| Overall Width | 2 in |
| Compatible Conduit Trade Size | 1/2 in |
| Hub Style | Threaded |
| Number of Hubs | 2 |
| Shape | LL |
| Thread Type | NPT |
| Connection Orientation | 90 Degrees |
| Overall Length | 4-5/8 in |
| Thread Size | 1/2 in |
| Trade Size | 1/2 in |
| Body Capacity | 4 cu in |
| Connection Type | Threaded |
| Height | 1-3/8 in |
| Width | 2 in |
| Length | 4-5/8 in |
| Hazardous Rating(s) | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| UL File Number | E3397 |
| CSA File Number | LR11852 |
| Pallet Quantity | 2,520 |
| Type | Conduit Body |
| Finish Type | Powder Epoxy Paint |
| Carton Quantity | 5 |
| Hub Pattern | LL |
| Application | To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC. |
| Dimensions | 4-5/8 in x 2 in x 1-3/8 in |
| Package Net Weight | 0.78 |
| Each - Width | 2 in |
| Package Quantity | 1 |
