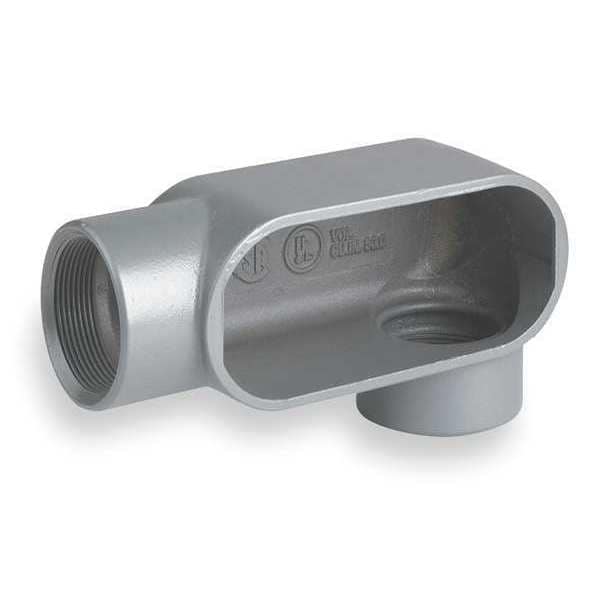

Conduit Outlet Body, Iron, LL, 3/4 In.
| Conduit Outlet Body Type | Conduit Outlet Body |
|---|---|
| Item | Conduit Outlet Body |
| Hazardous Location | Yes |
| Hub Size | 3/4 |
| Series | Duraloy 7 |
| Conduit Outlet Body Material | Iron |
| Conduit Outlet Body Style | LL |
| Material | Iron |
| Conduit Outlet Body Capacity | 7 cu in |
| Conduit Outlet Body Hub Size | 3/4 in |
| Conduit Outlet Body Hub Style | Threaded |
| For Use With | IMC, RMC |
| Special Features | Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl |
| Back Type | Flat |
| Color | Gray |
| Conduit Outlet Hub Size | 3/4 in |
| Standards | CSA, UL |
| Form | Form 7 |
| Finish | Powder Epoxy Paint |
| Hazardous Location Rating | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| Body Style | LL |
| Body Capacity | 7 cu in |
| Overall Length | 11 in |
| Trade Size | 3/4 in |
| Hub Style | Threaded |
| Overall Height | 3-3/4 in |
| Connection Type | Threaded |
| Connection Orientation | 90 Degrees |
| Compatible Cover | 270, 270C, 270CG, 270CGSA, 270CSA, 270G, 270GSA, 270SA |
| Thread Size | 3/4 in |
| Thread Type | NPT |
| Body Type | Conduit Outlet Body |
| Overall Width | 7 in |
| Number of Hubs | 2 |
| Compatible Conduit Trade Size | 3/4 in |
| Compatible Conduit Type | RMC, IMC |
| Thread Gender | Female |
| Shape | LL |
| Weight | 1.31 lb |
| Height | 3-3/4 in |
| Width | 7 in |
| Length | 11 in |
| UL File Number | E3397 |
| Carton Quantity | 5 |
| Hazardous Rating(s) | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| Dimensions | 11 in x 7 in x 3-3/4 in |
| Package Net Weight | 1.31 |
| Application | To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC. |
| Type | Conduit Body |
| Hub Pattern | LL |
| CSA File Number | LR11852 |
| Each - Width | 7 in |
| Finish Type | Powder Epoxy Paint |
| Package Quantity | 1 |
