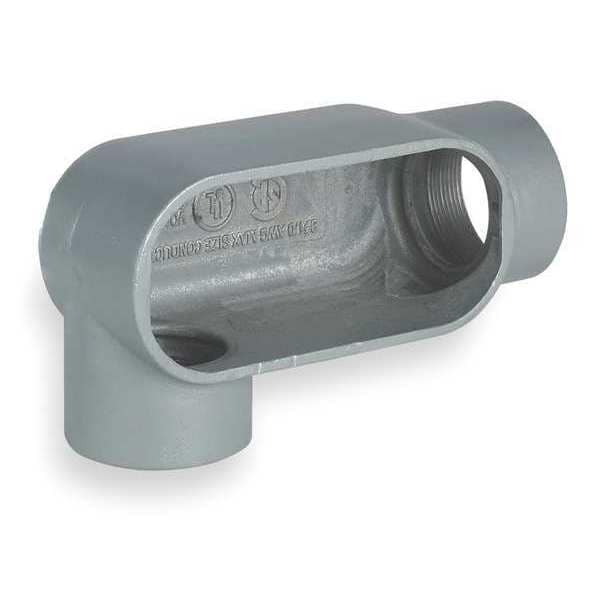

Conduit Outlet Body, Iron, LR, 1-1/4 In.
| Conduit Outlet Body Type | Conduit Outlet Body |
|---|---|
| Item | Conduit Outlet Body |
| Hazardous Location | Yes |
| Hub Size | 1-1/4 in |
| Series | Duraloy 7 |
| Conduit Outlet Body Material | Iron |
| Conduit Outlet Body Style | LR |
| Material | Iron |
| Conduit Outlet Body Capacity | 19.5 cu in |
| Conduit Outlet Body Hub Size | 1-1/4 in |
| Conduit Outlet Body Hub Style | Threaded |
| For Use With | IMC, RMC |
| Special Features | Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl |
| Color | Gray |
| Conduit Outlet Hub Size | 1-1/4 in |
| Back Type | Flat |
| Standards | CSA, UL |
| Form | Form 7 |
| Body Style | LR |
| Compatible Cover | 470, 470C, 470CG, 470CGSA, 470CSA, 470G, 470GSA, 470SA |
| Overall Height | 3 in |
| Connection Orientation | 90 Degrees |
| Hub Style | Threaded |
| Overall Width | 4 in |
| Hazardous Location Rating | Class I, Division 2, Class I, Zone 2 |
| Overall Length | 7 in |
| Shape | LR |
| Compatible Conduit Type | RMC, IMC |
| Thread Gender | Female |
| Body Type | Conduit Outlet Body |
| Finish | Powder Coated |
| Thread Size | 1 1/4 in |
| Number of Hubs | 2 |
| Body Capacity | 19.5 cu in |
| Thread Type | NPT |
| Trade Size | 1-1/4 in |
| Compatible Conduit Trade Size | 1-1/4 in |
| Connection Type | Threaded |
| Length | 7 in |
| Height | 3 in |
| Width | 4 in |
| Dimensions | 7 in x 4 in x 3 in |
| Each - Width | 4 in |
| Type | Conduit Body |
| CSA File Number | LR11852 |
| Hazardous Rating(s) | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| Hub Pattern | LR |
| UL File Number | E3397 |
| Finish Type | Powder Epoxy Paint |
| Application | To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC. |
| Package Quantity | 1 |
