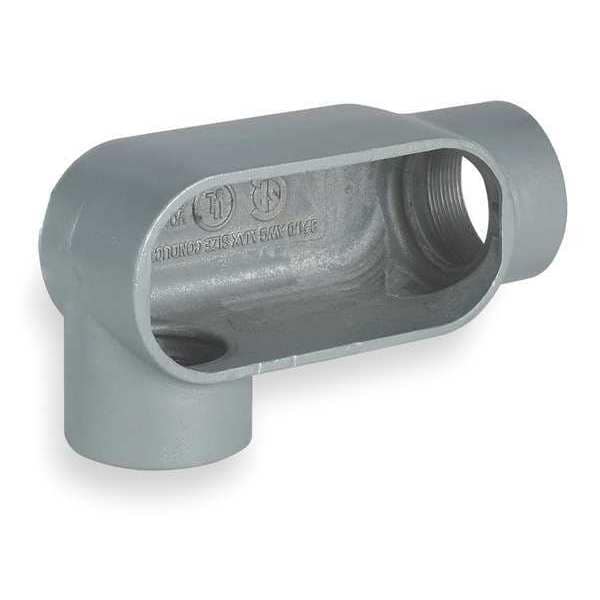

Conduit Outlet Body, Iron, LR, 1/2 In.
| Conduit Outlet Body Type | Conduit Outlet Body |
|---|---|
| Item | Conduit Outlet Body |
| Hazardous Location | Yes |
| Hub Size | 1/2 in |
| Series | Duraloy 7 |
| Conduit Outlet Body Material | Iron |
| Conduit Outlet Body Style | LR |
| Material | Iron |
| Conduit Outlet Body Capacity | 4 cu in |
| Conduit Outlet Body Hub Size | 1/2 in |
| Conduit Outlet Body Hub Style | Threaded |
| For Use With | IMC, RMC |
| Special Features | Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl |
| Color | Gray |
| Back Type | Flat |
| Conduit Outlet Hub Size | 1/2 in |
| Standards | CSA, UL |
| Form | Form 7 |
| Body Style | LR |
| Finish | Powder Coated |
| Overall Height | 2 in |
| Thread Type | NPT |
| Overall Length | 5 in |
| Hub Style | Threaded |
| Compatible Conduit Type | RMC, IMC |
| Body Capacity | 4 cu in |
| Connection Orientation | 90 Degrees |
| Number of Hubs | 2 |
| Thread Gender | Female |
| Overall Width | 3 in |
| Trade Size | 1/2 in |
| Connection Type | Threaded |
| Hazardous Location Rating | Class I, Division 2, Class I, Zone 2 |
| Shape | LR |
| Compatible Cover | 170, 170C, 170CG, 170CGSA, 170CSA, 170G, 170GSA, 170SA |
| Thread Size | 1/2 in |
| Body Type | Conduit Outlet Body |
| Compatible Conduit Trade Size | 1/2 in |
| Width | 3 in |
| Height | 2 in |
| Length | 5 in |
| Hub Pattern | LR |
| Each - Width | 3 in |
| UL File Number | E3397 |
| Application | To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC. |
| Hazardous Rating(s) | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| Finish Type | Powder Epoxy Paint |
| CSA File Number | LR11852 |
| Dimensions | 5 in x 3 in x 2 in |
| Type | Conduit Body |
| Package Quantity | 1 |
