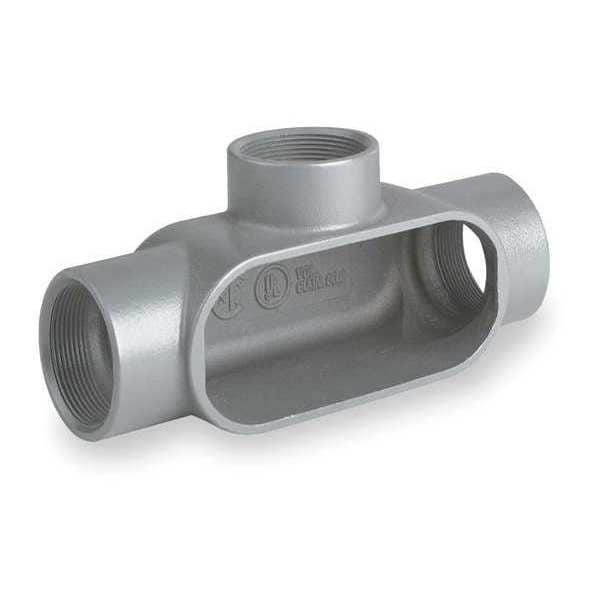

Conduit Outlet Body, Iron, T, 1 In.
| Item | Conduit Outlet Body |
|---|---|
| Conduit Outlet Body Type | Conduit Outlet Body |
| Hazardous Location | Yes |
| Hub Size | 1 in |
| Series | Duraloy 7 |
| Conduit Outlet Body Material | Iron |
| Conduit Outlet Body Style | T |
| Material | Iron |
| Conduit Outlet Body Capacity | 11.5 cu in |
| Conduit Outlet Body Hub Size | 1 in |
| Conduit Outlet Body Hub Style | Threaded |
| For Use With | IMC, RMC |
| Special Features | Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl |
| Conduit Outlet Hub Size | 1 in |
| Color | Gray |
| Back Type | Flat |
| Standards | CSA, UL |
| Form | Form 7 |
| Body Style | T |
| Number of Hubs | 3 |
| Compatible Conduit Type | RMC, IMC |
| Thread Type | NPT |
| Trade Size | 1 in |
| Overall Height | 3 in |
| Thread Gender | Female |
| Shape | T |
| Body Capacity | 11.5 cu in |
| Connection Orientation | Multi-Angle |
| Thread Size | 1 in |
| Overall Width | 4 in |
| Hazardous Location Rating | Class I Zone 2, Class I, Division 2 |
| Finish | Powder Coated |
| Overall Length | 8 in |
| Body Type | Conduit Outlet Body |
| Compatible Conduit Trade Size | 1 in |
| Hub Style | Threaded |
| Connection Type | Threaded |
| Compatible Cover | 370G |
| Height | 3 in |
| Length | 8 in |
| Width | 4 in |
| Finish Type | Powder Epoxy Paint |
| Type | Conduit Body |
| Hub Pattern | T |
| Dimensions | 8 in x 4 in x 3 in |
| Each - Width | 4 in |
| Application | To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC. |
| CSA File Number | LR11852 |
| UL File Number | E3397 |
| Hazardous Rating(s) | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| Package Quantity | 1 |
