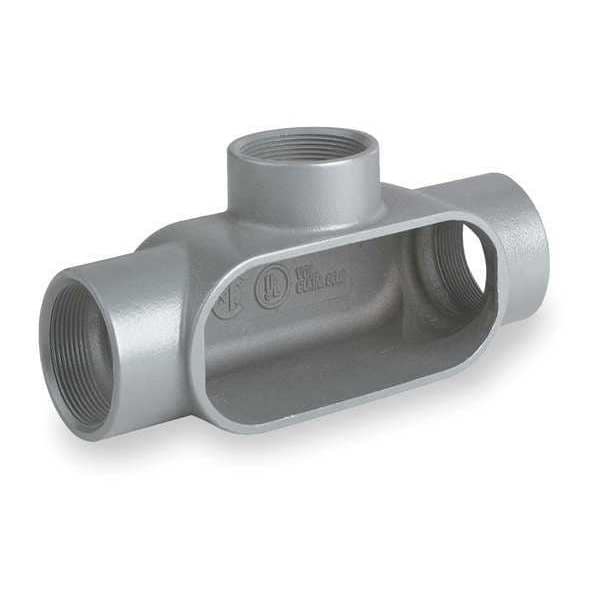

Conduit Outlet Body, Iron, T, 3/4 In.
| Conduit Outlet Body Type | Conduit Outlet Body |
|---|---|
| Item | Conduit Outlet Body |
| Hazardous Location | Yes |
| Hub Size | 3/4 in |
| Series | Duraloy 7 |
| Conduit Outlet Body Material | Iron |
| Conduit Outlet Body Style | T |
| Material | Iron |
| Conduit Outlet Body Capacity | 9.5 cu in |
| Conduit Outlet Body Hub Size | 3/4 in |
| Conduit Outlet Body Hub Style | Threaded |
| For Use With | IMC, RMC |
| Special Features | Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl |
| Back Type | Flat |
| Color | Gray |
| Conduit Outlet Hub Size | 3/4 in |
| Standards | CSA, UL |
| Form | Form 7 |
| Body Style | T |
| Overall Height | 3 in |
| Body Type | Conduit Outlet Body |
| Compatible Conduit Trade Size | 3/4 in |
| Finish | Powder Coated |
| Hub Style | Threaded |
| Thread Type | NPT |
| Trade Size | 3/4 in |
| Connection Type | Threaded |
| Overall Length | 7 in |
| Body Capacity | 9.5 cu in |
| Weight | 1.68 lb |
| Overall Width | 3 in |
| Number of Hubs | 3 |
| Hazardous Location Rating | Class I Zone 2, Class I, Division 2 |
| Connection Orientation | Multi-Angle |
| Compatible Cover | 270G |
| Shape | T |
| Thread Gender | Female |
| Compatible Conduit Type | RMC, IMC |
| Thread Size | 3/4 in |
| Length | 7 in |
| Width | 3 in |
| Height | 3 in |
| Each - Width | 3 in |
| Type | Conduit Body |
| Application | To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC. |
| Hub Pattern | T |
| CSA File Number | LR11852 |
| UL File Number | E3397 |
| Dimensions | 7 in x 3 in x 3 in |
| Finish Type | Powder Epoxy Paint |
| Hazardous Rating(s) | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| Package Quantity | 1 |
