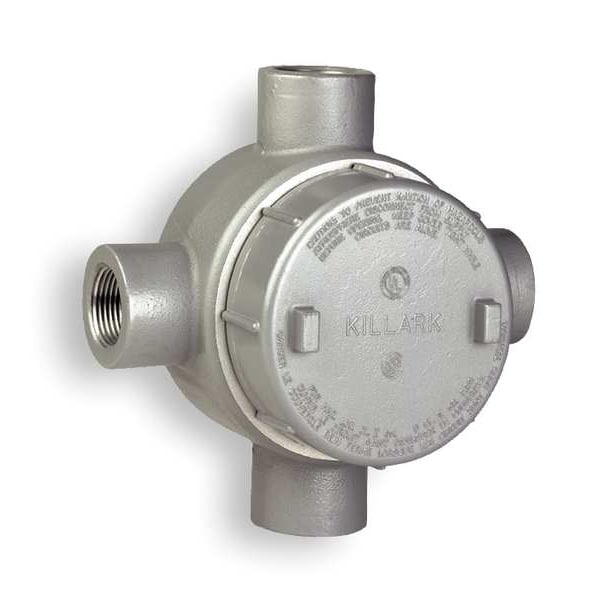

Conduit Outlet Body, Iron, X, 2 In.
| Item | Conduit Outlet Body |
|---|---|
| Conduit Outlet Body Type | Conduit Outlet Body |
| Hazardous Location | Yes |
| Hub Size | 2 |
| Series | GE |
| Conduit Outlet Body Material | Iron |
| Conduit Outlet Body Style | X |
| Material | Iron |
| Conduit Outlet Body Capacity | 75 cu in |
| Conduit Outlet Body Hub Size | 2 in |
| Conduit Outlet Body Hub Style | Threaded |
| For Use With | RMC |
| Special Features | Internally Threaded Cover Openings |
| Color | Gray |
| Conduit Outlet Hub Size | 2 in |
| Standards | CSA, UL |
| Back Type | Flat |
| Form | Form 1 |
| Finish | Powder Epoxy Paint |
| Body Style | X |
| Compatible Conduit Type | RMC |
| Compatible Conduit Trade Size | 2 in |
| Cover Included | Yes |
| Connection Orientation | Multi-Angle |
| Trade Size | 2 in |
| Overall Width | 8-1/2 in |
| Thread Gender | Female |
| Connection Type | Threaded |
| Body Type | Conduit Outlet Body |
| Body Capacity | 75 cu in |
| Shape | LB |
| Number of Hubs | 4 |
| Hub Style | Threaded |
| Overall Length | 10-3/8 in |
| Overall Height | 4-1/2 in |
| Thread Size | 2 in |
| Thread Type | NPT |
| Height | 4-1/2 in |
| Width | 8-1/2 in |
| Length | 10-3/8 in |
| Type | Outlet Body With Cover |
| Hub Pattern | X |
| Dimensions | 10-3/8 in x 8-1/2 in x 4-1/2 in |
| UL File Number | E10514 |
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Group C (if sealed within 18"), D;Class I, Zones 1 & 2, Group IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| CSA File Number | LR11716 |
| Size | 10.375 in x 8.5 in x 4.5 in |
| Each - Width | 8-1/2 in |
| Package Net Weight | 12.3 |
| Application | Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes. |
| Finish Type | Powder Epoxy Paint |
| Package Quantity | 1 |
