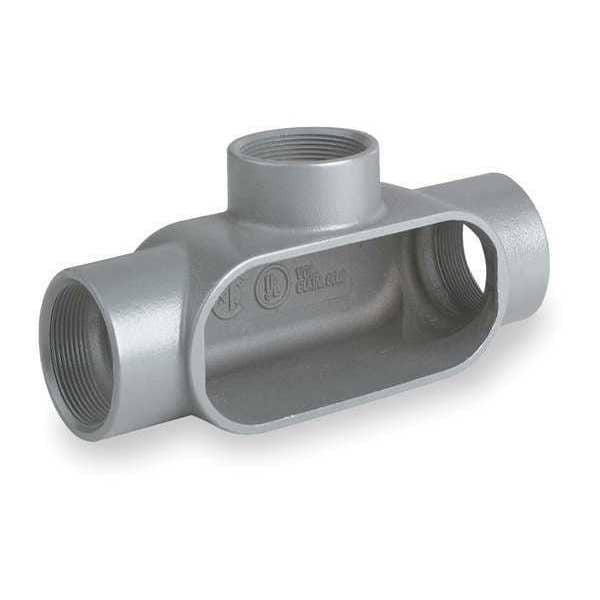

Conduit Outlet Body, T, 1/2 In.
| Item | Conduit Outlet Body |
|---|---|
| Conduit Outlet Body Type | Conduit Outlet Body |
| Hazardous Location | Yes |
| Hub Size | 1/2 |
| Series | Duraloy 7 |
| Conduit Outlet Body Material | Iron |
| Conduit Outlet Body Style | T |
| Material | Iron |
| Conduit Outlet Body Capacity | 6.2 cu in |
| Conduit Outlet Body Hub Size | 1/2 in |
| Conduit Outlet Body Hub Style | Threaded |
| For Use With | IMC, RMC |
| Special Features | Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl |
| Color | Gray |
| Back Type | Flat |
| Conduit Outlet Hub Size | 1/2 in |
| Standards | CSA, UL |
| Form | Form 7 |
| Hazardous Location Rating | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| Finish | Powder Epoxy Paint |
| Body Style | T |
| Connection Orientation | Multi-Angle |
| Compatible Cover | 170G |
| Trade Size | 1/2 in |
| Thread Gender | Female |
| Overall Width | 3 in |
| Connection Type | Threaded |
| Body Type | Conduit Outlet Body |
| Weight | 1.22 lb |
| Number of Hubs | 3 |
| Thread Size | 1/2 in |
| Compatible Conduit Trade Size | 1/2 in |
| Body Capacity | 6.2 cu in |
| Hub Style | Threaded |
| Overall Length | 6 in |
| Shape | T |
| Overall Height | 2 in |
| Thread Type | NPT |
| Compatible Conduit Type | RMC, IMC |
| Height | 2 in |
| Width | 3 in |
| Length | 6 in |
| Carton Quantity | 5 |
| Hub Pattern | T |
| UL File Number | E3397 |
| Application | To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC. |
| CSA File Number | LR11852 |
| Dimensions | 6 in x 3 in x 2 in |
| Finish Type | Powder Epoxy Paint |
| Each - Width | 3 in |
| Type | Conduit Body |
| Hazardous Rating(s) | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| Package Net Weight | 1.22 |
| Package Quantity | 1 |
