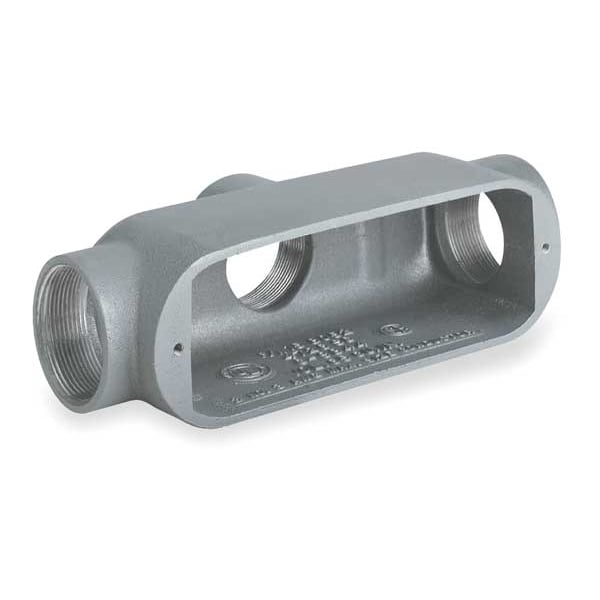

Conduit Outlet Body, TB, 1/2 In.
| Conduit Outlet Body Type | Conduit Outlet Body |
|---|---|
| Item | Conduit Outlet Body |
| Hazardous Location | Yes |
| Hub Size | 1/2 |
| Series | O Series |
| Conduit Outlet Body Material | Copper Free Aluminum |
| Conduit Outlet Body Style | TB |
| Material | Aluminum, Copper Free (less than 4/10 of 1%) |
| Conduit Outlet Body Capacity | 4 cu in |
| Conduit Outlet Body Hub Size | 1/2 in |
| Includes | Stainless Steel Screws |
| Conduit Outlet Body Hub Style | Threaded |
| For Use With | IMC, RMC |
| Special Features | Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Interchangeable with competitive products. Volume is 4 cu. in. |
| Back Type | Flat |
| Color | Gray |
| Conduit Outlet Hub Size | 1/2 in |
| Standards | CSA, UL |
| Form | Form 7 |
| Hazardous Location Rating | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| Finish | Powder Epoxy Paint |
| Body Style | TB |
| Overall Length | 6 in |
| Body Capacity | 4 cu in |
| Connection Orientation | Multi-Angle |
| Compatible Conduit Type | RMC, IMC |
| Thread Size | 1/2 in |
| Connection Type | Threaded |
| Overall Width | 2 in |
| Thread Gender | Female |
| Overall Height | 3 in |
| Hub Style | Threaded |
| Thread Type | NPT |
| Compatible Conduit Trade Size | 1/2 in |
| Body Type | Conduit Outlet Body |
| Shape | TB |
| Compatible Cover | OL-10 |
| Number of Hubs | 3 |
| Trade Size | 1/2 in |
| Length | 6 in |
| Width | 2 in |
| Height | 3 in |
| CSA File Number | LR11852 |
| Each - Width | 2 in |
| Finish Type | Powder Epoxy Paint |
| Type | Conduit Body |
| Carton Quantity | 10 |
| Dimensions | 6 in x 2 in x 3 in |
| Package Net Weight | 0.38 |
| Hub Pattern | TA |
| Hazardous Rating(s) | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| Application | To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC. |
| UL File Number | E3397 |
| Package Quantity | 1 |
