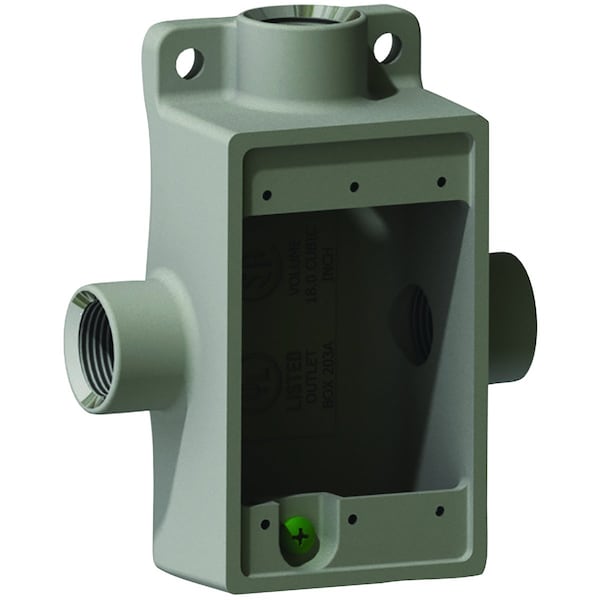

Device Box, Aluminum, Shallow, T Style, 1/2" Hub Size
| Item | Device Box,Aluminum,Shallow,T Style, 1/2" Hub Size |
|---|---|
| Hub Size | 1/2 |
| Series | F |
| Material | Aluminum, Copper Free (less than 4/10 of 1%) |
| Special Features | Tapered threads (NPT with integral bushings). Internal grounding screw. Single gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42). |
| Color | Gray |
| Finish | Powder Epoxy Paint |
| Length | 7-1/2 in |
| Height | 4-1/8 in |
| Width | 6 in |
| Application | Accommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes. |
| Size | 7.5 in x 6 in x 4.125 in |
| CSA File Number | LR11852 |
| Number of Outlet | 1 |
| Dimensions | 7-1/2 in x 6 in x 4-1/8 in |
| Package Net Weight | 1.08 |
| Finish Type | Powder Epoxy Paint |
| Hub Pattern | FST |
| UL File Number | E3397 |
| Number Of Outlets | 1 |
| UPC | 783936000000 |
| Each - Width | 6 in |
| Type | Device Box |
| Package Quantity | 1 |
