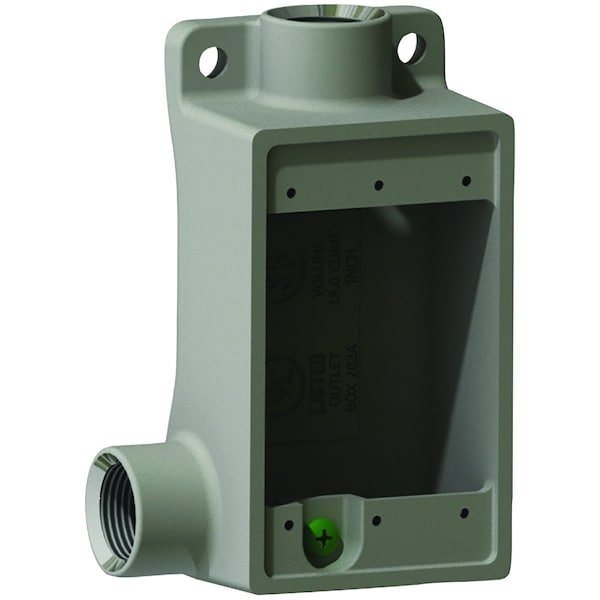

FS Box Shallow, L, Iron, 1/2"
| Item | FS Box Shallow,L,Iron,1/2" |
|---|---|
| Hub Size | 1/2 |
| Series | F |
| Material | Iron |
| Special Features | Tapered threads (NPT with integral bushings). Internal grounding screw. Single gang style. Suitable for use in wet locations when used with gasket covers. Cast iron is suitable for concrete use. For use with FS-style covers (see pages F40-F42). |
| Color | Gray |
| Application | Accommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes. |
| Finish | Powder Epoxy Paint |
| Length | 8-3/4 in |
| Height | 2-3/4 in |
| Width | 5-1/8 in |
| Size | 8.75 in x 5.125 in x 2.75 in |
| Package Net Weight | 2.18 |
| Finish Type | Powder Epoxy Paint |
| Each - Width | 5-1/8 in |
| UL File Number | E3397 |
| CSA File Number | LR11852 |
| Number Of Outlets | 1 |
| Type | Device Box |
| UPC | 783936000000 |
| Number of Outlet | 1 |
| Hub Pattern | FSL |
| Dimensions | 8-3/4 in x 5-1/8 in x 2-3/4 in |
| Package Quantity | 1 |
