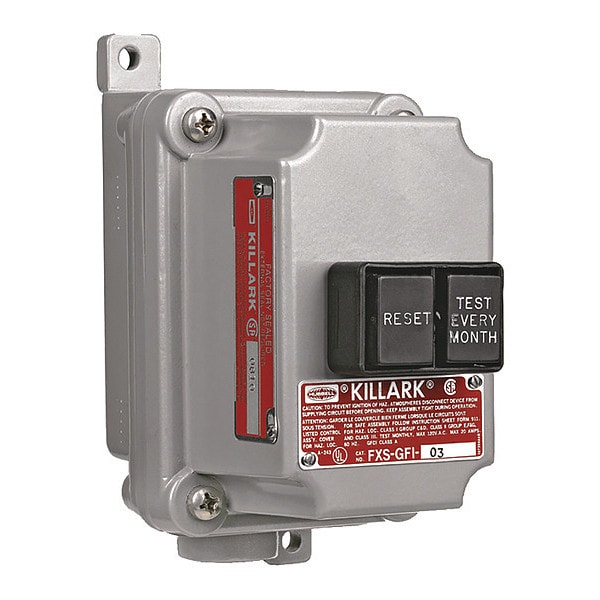

Interruptor de corriente de falla a tierra (GFCI) Hubbell Killark, clasificado a 120VAC, 20A, con calificación NEMA 7. Ideal para protección contra descargas eléctricas en entornos industriales y comerciales.
| Item | GFCI |
|---|---|
| NEMA Rating | 7 |
| Cover Type | Screw-On Cover |
| Current Rating | 20 A |
| Housing Color | Gray |
| Housing Material | Copper-Free Aluminum |
| NEMA Enclosure Rating | 3 |
| Material | Copper-Free Aluminum |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Standards | CSA Certified, UL Listed |
| Feed-Thru Hub (In.) | 3/4 in |
| Hz | 60 |
| Hub Size | 3/4 in |
| Screws | Stainless Steel |
| Finish | Powder Coated |
| Voltage | 120 V |
| Amps | 20 |
| Mounting Box | 1 Gang, Copperfree Aluminum |
| Hub Style | Feed-Thru |
| Overall Height | 6.813 in |
| Overall Depth | 5-1/8 in |
| Hub Diameter | 1/2 in |
| For Location | Outdoor, Indoor |
| Voltage Rating | 120 V AC |
| For Environment | Hazardous Location |
| Overall Width | 3.688 in |
| Hub Type | Dead End |
| Housing Material Finish | Powder Coated |
| Frequency Rating | 50/60 Hz |
| Series | FXS-GFI |
| UL File Number | E53360, E10501 |
| Application | FXS ground fault interrupters are designed to interrupt a circuit when a ground fault is detected on equipment which may be handled by personnel in hazardous locations. |
| Actuator | Gound Fault Interupter |
| Width | 3.688 in |
| CSA File Number | LR11712 |
| Color | Gray |
| Depth | 39569 |
| Amperage Rating | 20 A |
| Ambient Temp. Range | UL: -25 to 40°C, CSA: -50 to 40°C, IEC: -20 to 40°C |
| Type | Aluminum Factory Sealed Ground Fault Interrupter |
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Back Box Type | FXB |
| Each - Width | 3.688 in |
| Action | Push buttons |
| Special Features | Killark SEAL-X Series Factory Sealed Control Stations provide Ground fault interrupting protection solutions in hazardous location areas. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified. |
| Package Quantity | 1 |
