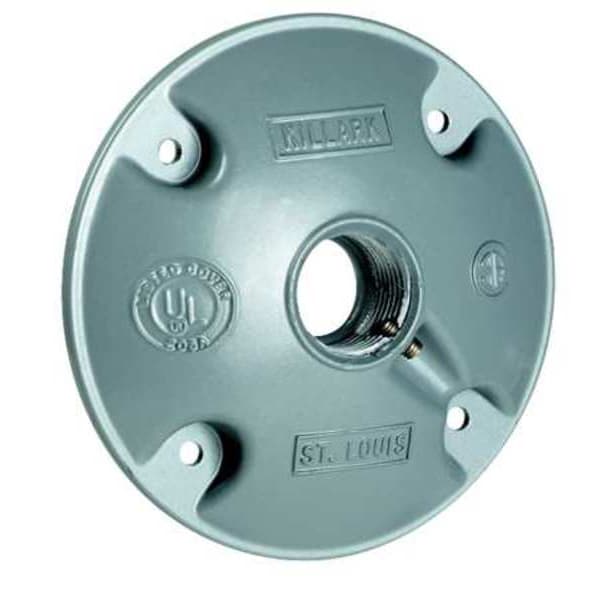

Hub Cover, 1/2 Hub Size, Killark VJ Series
| Item | Hub Cover |
|---|---|
| Hub Size | 1/2 in |
| Design | Screw In |
| Material | Aluminum, Copper Free (less than 4/10 of 1%) |
| Includes | Gasket, Mounting Screws |
| Special Features | For use with VJ Series outlet boxes. |
| Depth | 1 in |
| Box Type | Round Ceiling Pan |
| Length | 4-1/2 in |
| Width | 5-1/4 in |
| Standards | CSA LR11852, UL E30107, UL E3397 |
| Number of Gangs | 1 |
| Conduit Size | 1/2 in |
| Color | Gray |
| Length (Straight Wireway) | 4 1/2 in |
| Height | 3 in |
| Cover Type | Hub |
| Each - Width | 3 in |
| Finish Type | Powder Epoxy Paint |
| Dimensions | 1 in x 3 in x 3 in |
| Size | 1 in x 3 in x 3 in |
| Application | Hub cover for use with VJ Series round boxes, and for hanging pendant fixtures. Cover mounting centers are 3-1/2" and will accommodate 4" round or octagonal box covers and devices. Screw holes are 8-32 size. Gaskets are required for wet and damp locations |
| Type | Cover |
| IP Rating | IPX6 |
| Compatible with Series | VJ |
| Mounting Orientation | Vertical, Horizontal |
| Overall Depth | 1 in |
| Overall Width | 3 in |
| For Number of Gangs | 1 |
| Cover Material | Copper-Free Aluminum |
| NEMA Enclosure Rating | 3, 4 |
| Compatible with Product Type | Hubs |
| Overall Height | 3 in |
| Package Quantity | 1 |
