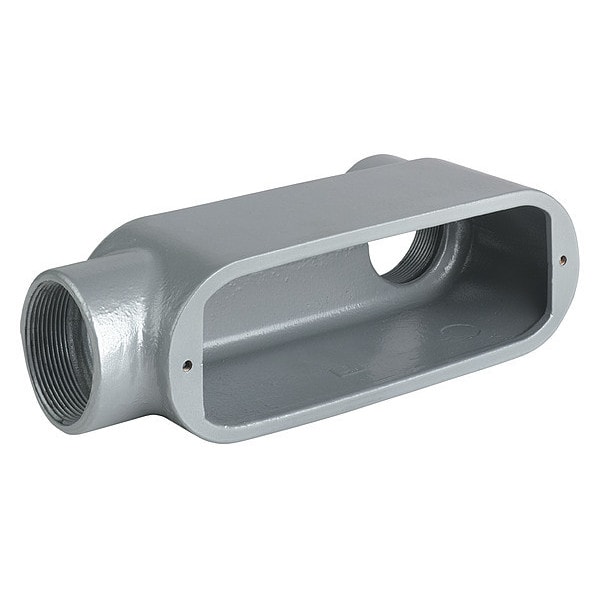

Olb-0M Conduit Body Lb, 4 Inch Mall Iron
| Item | Conduit Outlet Body |
|---|---|
| Hazardous Location | Yes |
| Hub Size | 4 |
| Series | O Series |
| Conduit Outlet Body Material | Iron |
| Conduit Outlet Body Style | LB |
| Material | Iron |
| Conduit Outlet Body Capacity | 320 cu in |
| Conduit Outlet Body Hub Size | 4 in |
| Conduit Outlet Body Hub Style | Threaded |
| For Use With | IMC, RMC |
| Special Features | Chromate Sealant and Electrostatically Applied Powder Coating, Corrosion Protection Tri-Coat Finish, Electrozinc |
| Back Type | Flat |
| Standards | CSA, UL |
| Color | Gray |
| Finish | Powder Epoxy Paint |
| Height | 8-1/2 in |
| Width | 10-3/4 in |
| Length | 18-7/8 in |
| Body Style | LB |
| Hub Style | Threaded |
| Body Type | Conduit Outlet Body |
| Overall Width | 10-3/4 in |
| Number of Hubs | 2 |
| Shape | LB |
| Thread Type | NPT |
| Thread Size | 4 in |
| Connection Type | Threaded |
| Trade Size | 4 in |
| Body Capacity | 320 cu in |
| Compatible Conduit Trade Size | 4 in |
| Overall Length | 18-7/8 in |
| Connection Orientation | 90 Degrees |
| Thread Gender | Female |
| Overall Height | 8-1/2 in |
| Each - Width | 10-3/4 in |
| UL File Number | E3397 |
| Hub Pattern | LB |
| Finish Type | Powder Epoxy Paint |
| CSA File Number | LR11852 |
| Hazardous Rating(s) | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| Hazardous Location Rating | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| UPC | 783936000000 |
| Application | To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC. |
| Package Net Weight | 21.72 |
| Type | Conduit Body |
| Dimensions | 18-7/8 in x 10-3/4 in x 8-1/2 in |
| Package Quantity | 1 |
