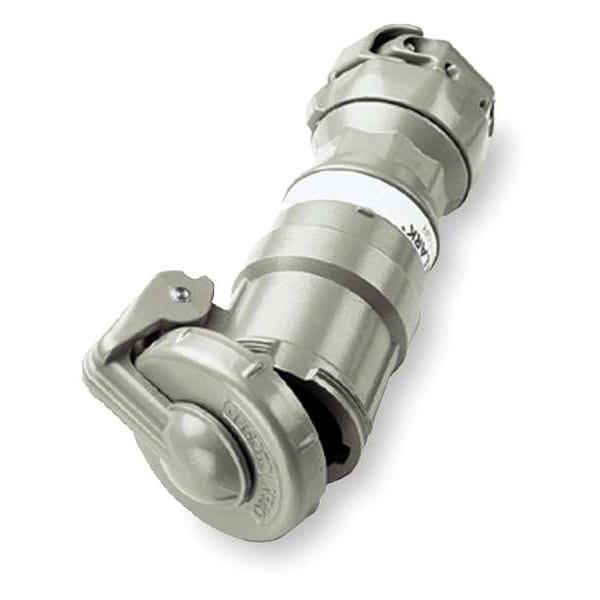

Conector Pin & Sleeve de 30 A y 250/600V AC para uso trifásico. Cuenta con 3 polos, estilo 1 a tierra y cumple con la normativa NEMA 4x para una protección avanzada.
| Item | Pin & Sleeve Connector |
|---|---|
| Current Rating | 30 A |
| Voltage Rating | 250/600V AC |
| Phase | Three |
| Number of Poles | 3 |
| Number of Wires | 3 |
| NEMA Enclosure Rating | 4X |
| Wire Connection Type | Screw Terminals |
| Connection Orientation | Straight |
| Switch Rated | No |
| Grounding Style | Style 1 |
| Housing Color | Gray |
| Cap Type | Flip-Up and Screw-On Cap |
| For Maximum Cable Diameter | 1.2 in |
| For Minimum Cable Diameter | 0.55 in |
| Standards | CSA Certified LR111846, UL E10757 |
| Resistance Properties | Corrosion Resistant |
| Amps | 30 |
| NEMA Rating | 4x |
| Material | Copper Free Aluminum with Electro Statically Applied Epoxy, Powder Finish |
| Voltage | 600V AC/250V DC |
| Finish | Epoxy Polyester |
| Features | Increased Safety Type Box Terminals with Gripper Ribs Securely Clamp Conductors, Octagonal Body Style, Suitable for Type P Marine Cable |
| Grounding | Grounded |
| Maximum Wire Size | 6 AWG |
| Housing Material Finish | Baked Powder Epoxy Coated, Polyester Finish |
| Overall Length | 7.53 in |
| Outside Diameter | 3.06 in |
| Contact Material | Brass |
| Power Indicating Light | No |
| Minimum Wire Size | 10 AWG |
| For Environment | Cold, Corrosive, Hazardous Location, Washdown, Wet |
| Market | Industrial |
| Housing Material | Copper-Free Aluminum |
| Compatible with Series | Versamate(R) |
| Shrouded | Yes |
| Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2 |
| Reverse Service | No |
| For Location | Outdoor, Indoor |
| Package Quantity | 1 |
