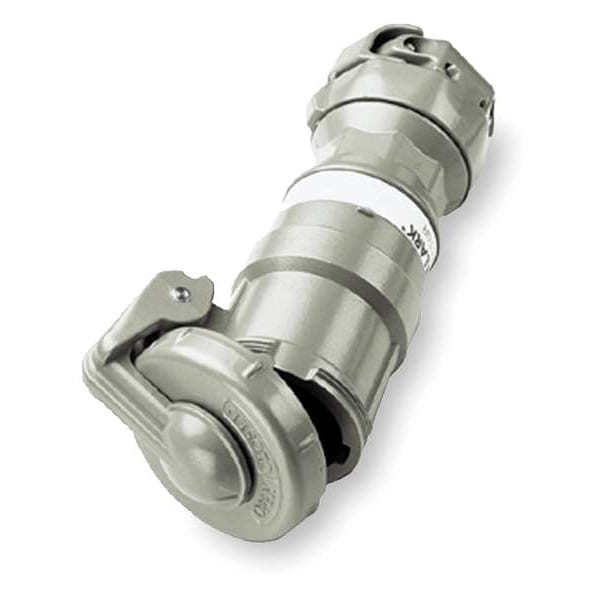

Conector de clavija y enchufe de alta calidad con capacidad de 30 amperios y voltaje de 600V CA. Diseñado para uso en aplicaciones monofásicas con 3 polos y estilo 2 de conexión a tierra. Cumple con los estándares NEMA 4x para resistencia a la intemperie y ambientes difíciles.
| Item | Pin & Sleeve Connector |
|---|---|
| Current Rating | 30 A |
| Voltage Rating | 600V AC |
| Phase | Single |
| Number of Poles | 3 |
| Number of Wires | 2 |
| NEMA Enclosure Rating | 4X |
| Wire Connection Type | Screw Terminals |
| Connection Orientation | Straight |
| Switch Rated | No |
| Grounding Style | Style 2 |
| Housing Color | Gray |
| Cap Type | Flip-Up and Screw-On Cap |
| For Maximum Cable Diameter | 1.2 in |
| For Minimum Cable Diameter | 0.55 in |
| Standards | CSA Certified LR111846, UL E10757 |
| Resistance Properties | Corrosion Resistant |
| Voltage | 600V AC/250V DC |
| Material | Copper Free Aluminum with Electro Statically Applied Epoxy, Powder Finish |
| NEMA Rating | 4x |
| Amps | 30 |
| Finish | Epoxy Polyester |
| Features | Increased Safety Type Box Terminals with Gripper Ribs Securely Clamp Conductors, Octagonal Body Style, Suitable for Type P Marine Cable |
| Housing Material Finish | Baked Powder Epoxy Coated, Polyester Finish |
| For Location | Outdoor, Indoor |
| Minimum Wire Size | 10 AWG |
| Reverse Service | No |
| Overall Length | 7.53 in |
| Compatible with Series | Versamate(R) |
| Power Indicating Light | No |
| Shrouded | Yes |
| Contact Material | Brass |
| Maximum Wire Size | 6 AWG |
| Housing Material | Copper-Free Aluminum |
| Outside Diameter | 3.06 in |
| Market | Industrial |
| Grounding | Grounded |
| Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2 |
| For Environment | Cold, Corrosive, Hazardous Location, Washdown, Wet |
| Series | VersaMate |
| Dimensions | 7.53 in x 3.06 in x 3.06 in |
| Style | Style II |
| Frequency Rating | 50-400 Hz |
| Grommet Range | 0.55 to 1.2 |
| Width | 3.06 in |
| Height | 3.06 in |
| Length | 7.53 in |
| Finish Type | Baked Powder Epoxy/Polyester Finish |
| Application | Suitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous or corrosive areas in such industrial applications as:Pulp & Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Reï¬neries, Chemical Plants, Grain Facilities , Textile Manufacturing, Food Processing Facilities |
| Package Quantity | 1 |
