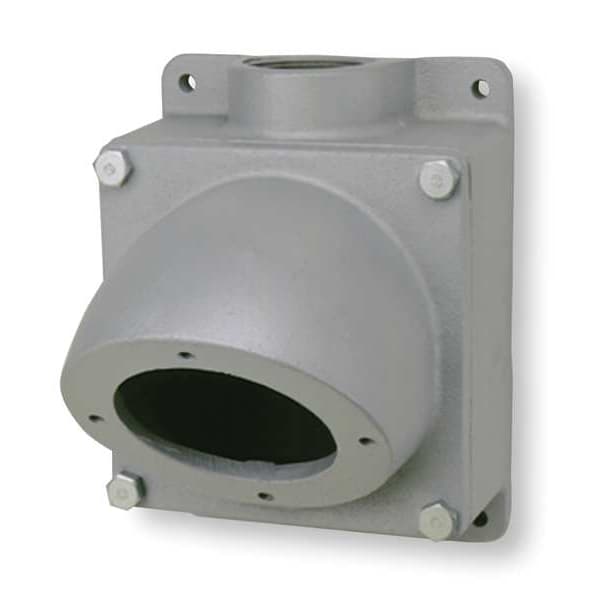

Este receptáculo Pin & Sleeve de Hubbell Killark tiene una capacidad de 200 A y es ideal para sistemas de 250/600V AC de tres fases. Con 3 polos, estilo 2 de puesta a tierra y clasificación NEMA 4X, es seguro y confiable para aplicaciones industriales.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 200 A |
| Voltage Rating | 250/600V AC |
| Phase | Three |
| Number of Poles | 3 |
| Number of Wires | 4 |
| IP Rating | Not Rated |
| NEMA Enclosure Rating | 4X |
| Wire Connection Type | Screw Terminals |
| Flange Type | Flanged |
| Grounding Style | Style 2 |
| Housing Color | Gray |
| Standards | CSA Certified, UL Listed |
| Resistance Properties | Moisture Resistant |
| Includes | Mounting Feet |
| Box Type | Dead End |
| Amps | 200 |
| Voltage | 600V AC/250V DC |
| Angle | Straight |
| Length | 13-1/4 in |
| Hub | 2 in |
| Material | Copper-Free Aluminum |
| Package Quantity | 1 |
| Use With | Hubbell Killark NEC Pin & Sleeve Devices |
| Width | 8-1/4 in |
| Length (Straight Wireway) | 13-1/4 in |
| Mount Type | Surface |
| For Environment | Corrosive, Hazardous Location |
| For Use With | Versamate Series Receptacles |
| Material Type | Metallic |
| Finish | Epoxy, Polyester |
| Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G |
| For Location | Outdoor, Indoor |
| Hub Type | Dead End |
| Overall Length | 13-1/4 in |
| Number of Gangs | 1 |
| Box Angle | 15 deg |
| Overall Width | 8-1/4 in |
| Market | Industrial |
| Compatible with Series | Versamate |
| Hub Diameter | 2 in |
| Hub Size | 2 in |
| Series | VersaMate |
