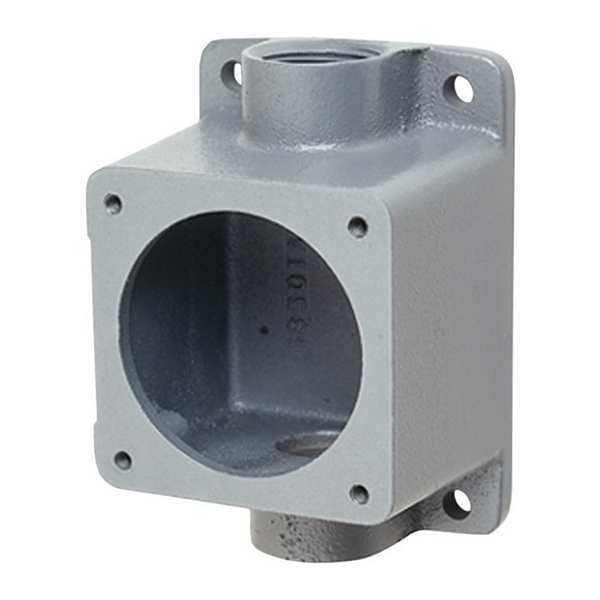

Este receptáculo de clavija y enchufe de 30 A y 250/600V AC es ideal para aplicaciones industriales y comerciales. Cuenta con clasificación NEMA 3, 4, 4X, lo que lo hace resistente a la intemperie y a ambientes corrosivos.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 30 A |
| Voltage Rating | 250/600V AC |
| Number of Poles | Not Rated |
| Number of Wires | 0 |
| NEMA Enclosure Rating | 4X, 4, 3 |
| Wire Connection Type | Screw Terminals |
| Housing Color | Gray |
| Cap Type | No Cap or Cover |
| Standards | CSA LR111846, UL E10757 |
| Resistance Properties | Moisture Resistant |
| Amps | 30 |
| Box Type | Dead End |
| Package Quantity | 1 |
| Width | 4-1/2 in |
| Material | Copper-Free Aluminum |
| Length | 4-7/8 in |
| Use With | Appleton Powertite Series Pin and Sleeve |
| Voltage | 600V AC/250V DC |
| Angle | 15 Degrees |
| Includes | Mounting Feet |
| Hub | 1/2 in |
| Length (Straight Wireway) | 4-7/8 in |
| Compatible with Series | Versamate |
| Hub Diameter | 1/2 in |
| Hub Type | Dead End |
| Material Type | Metallic |
| Box Angle | 15 deg |
| Overall Width | 3.69 in |
| Market | Industrial |
| Overall Length | 4-7/8 in |
| Number of Gangs | 1 |
| Overall Height | 4.88 in |
| Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G |
| For Environment | Corrosive, Hazardous Location |
| For Location | Outdoor, Indoor |
| For Use With | Versamate Series Receptacles |
| Mount Type | Surface |
| Finish | Epoxy, Polyester |
| Series | VersaMate |
| Hub Size | 1/2 in |
