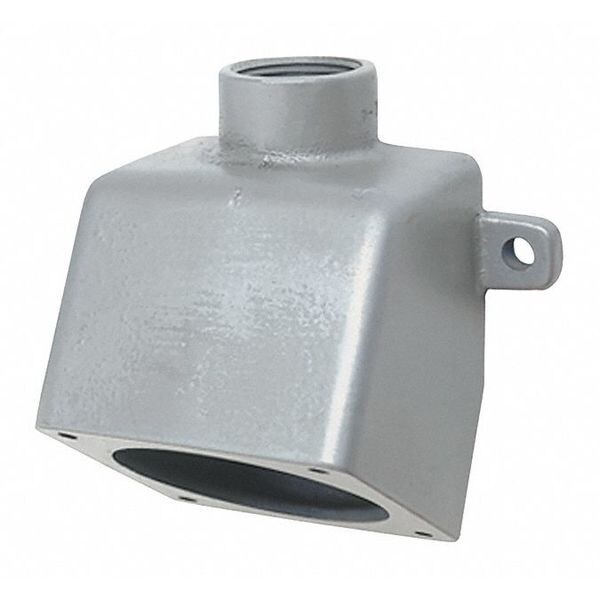

Este receptáculo Pin & Sleeve de Killark Hubbell proporciona una solución segura y confiable para la conexión de equipos eléctricos de alta potencia. Con capacidad de 60 A y voltaje de 250/600V AC, cumple con los estándares NEMA 3, 4, 4X para garantizar un rendimiento óptimo en entornos difíciles.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 60 A |
| Voltage Rating | 250/600V AC |
| Number of Poles | Not Rated |
| Number of Wires | 0 |
| IP Rating | IP67 |
| NEMA Enclosure Rating | 4X, 4, 3 |
| Wire Connection Type | Screw Terminals |
| Flange Type | Flanged |
| Housing Color | Gray |
| Cap Type | No Cap or Cover |
| Standards | CSA LR111846, UL E10757 |
| Resistance Properties | Moisture Resistant |
| Use With | Appleton Powertite Series Pin and Sleeve |
| Package Quantity | 1 |
| Box Type | Dead End |
| Amps | 60 |
| Length | 6-13/32 in |
| Angle | 15 Degrees |
| Includes | Mounting Feet |
| Hub | 1-1/4 in |
| Voltage | 600V AC/250V DC |
| Material | Copper-Free Aluminum |
| Width | 5-1/2 in |
| Length (Straight Wireway) | 6-13/32 in |
| Hub Type | Dead End |
| Mount Type | Surface |
| Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G |
| For Use With | Versamate Series Receptacles |
| Overall Width | 3.69 in |
| Overall Length | 6.406 in |
| Material Type | Metallic |
| Box Angle | 15 deg |
| Hub Diameter | 1-1/4 in |
| Number of Gangs | 1 |
| For Location | Outdoor, Indoor |
| Compatible with Series | Versamate |
| Overall Height | 4.88 in |
| Finish | Epoxy, Polyester |
| For Environment | Corrosive, Hazardous Location |
| Market | Industrial |
| Series | VersaMate |
| Hub Size | 1-1/4 in |
