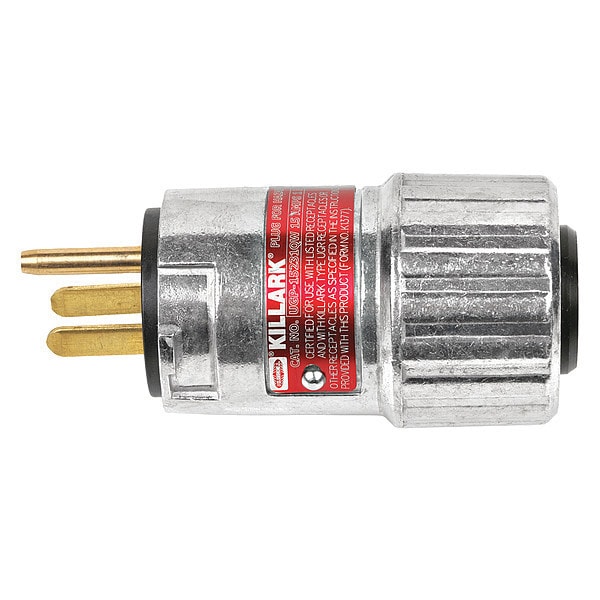

Plug, 125VAC, 60 Hz, 15A, 1 HP
| Item | Plug |
|---|---|
| Voltage | 125 V AC |
| NEMA Rating | 3, 7, 9 |
| Amps | 15 |
| Standards | CSA Certified, UL Listed |
| HP | 1 HP |
| Number of Wires | 3 |
| Number of Poles | 2 |
| NEMA Type | 5-15P |
| Material | Copper-Free Aluminum |
| Hz | 60 |
| Finish | Unfinished |
| IP Rating | Not Rated |
| Grounding | Grounded |
| Polarized | No |
| Housing Material | Metallic |
| Housing Color | Gray |
| Horsepower Rating | 1 HP |
| Connection Orientation | Angled |
| Hazardous Location Specification | Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2 |
| Wiring Style | Standard |
| Wire Connection Type | Screw Terminals |
| Phase | Single |
| Overall Length | 6-5/8 in |
| Current Rating | 15 A |
| Number of Blades | 3 |
| NEMA Enclosure Rating | 3, 4, 4X |
| Body Length | 6-5/8 in |
| NEMA Plug Configuration | 5 to 15 P |
| Maximum Wire Size | 10 AWG |
| Housing Material Finish | Baked Powder Epoxy Coated, Polyester |
| Resistance Properties | Corrosion Resistant |
| For Location | Indoor, Outdoor |
| Voltage Rating | 125V AC |
| Application | Petroleum refineries, chemical plants, wet/damp areas, corrosive environments, petroleum plants, grain elevators/feed mills, flour and feed mills, and indoor or outdoor locations |
| Height | 1-7/8 in |
| Wire Size | #10 AWG, #12 AWG, or #14 AWG |
| Each - Width | 2-3/8 in |
| Amperage Rating | 15 A |
| Series | UGP |
| Receptacle Type | Delayed Action |
| Size | 6-5/8 in x 2-3/8 in x 1-7/8 in |
| Width | 2-3/8 in |
| Color | Gray |
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups F, G;Class III, Divisions 1 & 2 |
| Length | 6-5/8 in |
| Type | Straight Blade |
| Special Features | ACCEPTOR plugs conform to NEMA configurations and can be used with standard receptacles in non-hazardous areas to maximize equipment utilization. The system's "turn to engage" feature locks in plug and can be used to prevent accidental disengagement of cr |
| Dimensions | 6-5/8 in x 2-3/8 in x 1-7/8 in |
| Package Quantity | 1 |
