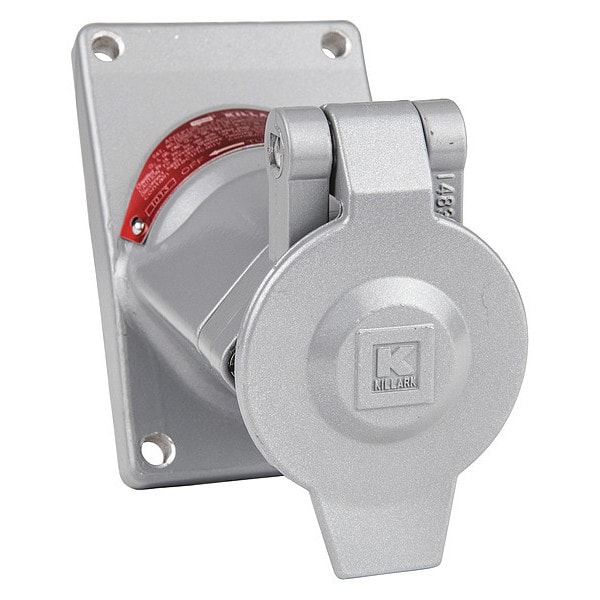

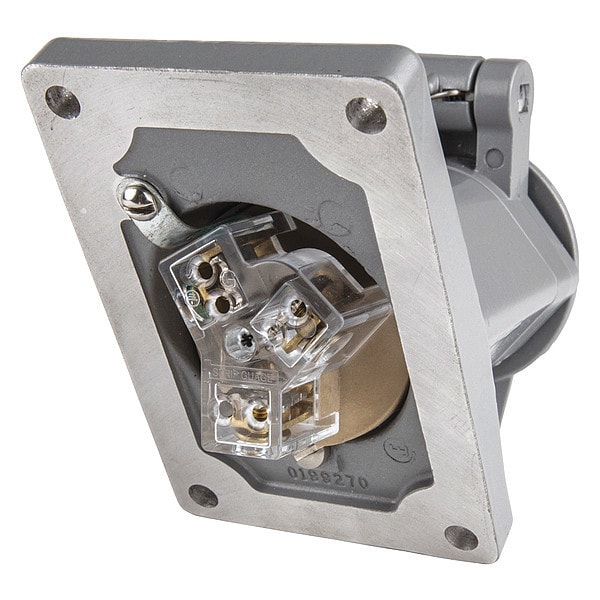

Este receptáculo Hubbell Killark es ideal para aplicaciones que requieren corriente de 125VCA, 60 Hz, 15 amperios y 1 caballo de fuerza. Fabricado con materiales duraderos y de alta calidad para un rendimiento confiable.
| Item | Receptacle |
|---|---|
| Voltage | 125V AC |
| NEMA Rating | 3, 7, 9 |
| Number of Wires | 3 |
| Number of Poles | 2 |
| HP | 1 HP |
| NEMA Type | 5-15R |
| Amps | 15 |
| Material | Copper-Free Aluminum |
| Finish | Epoxy Powder Coated |
| Hz | 60 |
| Standards | CSA Certified, UL Listed |
| Housing Material | Aluminum |
| Series | UGR |
| Phase | Single |
| Type | Straight Blade |
| NEMA Receptacle Configuration | 5-15R |
| Voltage Rating | 125V AC |
| Number of Gangs | 0 |
| Grade | General Use |
| Wire Connection Type | Screw Terminals |
| Overall Depth | 5.8 in |
| Mount Type | Surface |
| Connection Orientation | Straight |
| Grounding | Grounded |
| GFCI | No |
| Hazardous Location Specification | Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2 |
| Current Rating | 15 A |
| Housing Color | Gray |
| Wiring Method | Back |
| Receptacle Type | Single |
| AFCI | No |
| NEMA Enclosure Rating | 9FG, 3, 7CD |
| Horsepower Rating | 1 HP |
| Cover Type | Flip-Up Cover |
| Resistance Properties | Corrosion Resistant, Dust Ignition Proof, Explosion Proof |
| Polarized | No |
| Housing Material Finish | Epoxy Powder Coated |
| Factory Sealed | Factory Sealed |
| Amperage Rating | 15 A |
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups F, G;Class III, Divisions 1 & 2 |
| Package Quantity | 1 |
