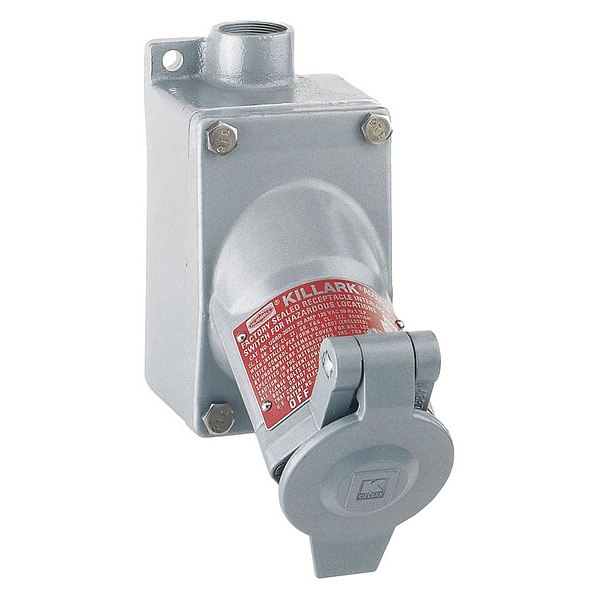

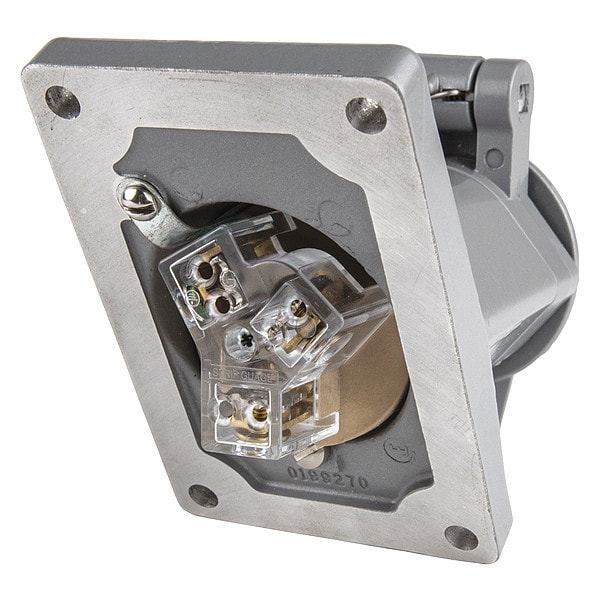

Este receptáculo de alta calidad de la marca Hubbell Killark es ideal para aplicaciones de 125VAC, 60 Hz, 20A y 1 HP. Cumple con los estándares de seguridad y durabilidad.
| Item | Receptacle |
|---|---|
| Voltage | 125V AC |
| NEMA Rating | 3, 7, 9 |
| Number of Wires | 3 |
| Number of Poles | 2 |
| HP | 1 HP |
| NEMA Type | 5-20R |
| Amps | 20 |
| Material | Copper-Free Aluminum |
| Standards | CSA Certified, UL Listed |
| Mounting Box | 1 Gang, Copperfree Aluminum |
| Finish | Epoxy Powder Coated |
| Hz | 60 |
| Feed-Thru Hub (In.) | 3/4 |
| Hub Style | Feed-Thru |
| Hub Size | 3/4 in |
| Grade | General Use |
| Housing Material | Aluminum |
| Receptacle Type | Single |
| Wire Connection Type | Screw Terminals |
| Mount Type | Surface |
| Horsepower Rating | 1 HP |
| Hazardous Location Specification | Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2 |
| Cover Type | Flip-Up Cover |
| Grounding | Grounded |
| Overall Depth | 5.8 in |
| NEMA Receptacle Configuration | 5-20R |
| Phase | Single |
| Number of Gangs | 1 |
| Housing Material Finish | Epoxy Powder Coated |
| GFCI | No |
| Current Rating | 20 A |
| AFCI | No |
| Connection Orientation | Straight |
| Resistance Properties | Corrosion Resistant, Dust Ignition Proof, Explosion Proof |
| Polarized | No |
| Voltage Rating | 125V AC |
| Wiring Method | Back |
| NEMA Enclosure Rating | 9FG, 3, 7CD |
| Housing Color | Gray |
| Type | Straight Blade |
| Hub Pattern | Feed-Thru |
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups F, G;Class III, Divisions 1 & 2 |
| Each - Width | 3.13 in |
| Factory Sealed | Factory Sealed |
| Series | UGR |
| Amperage Rating | 20 A |
| Width | 3.13 in |
| Package Quantity | 1 |
