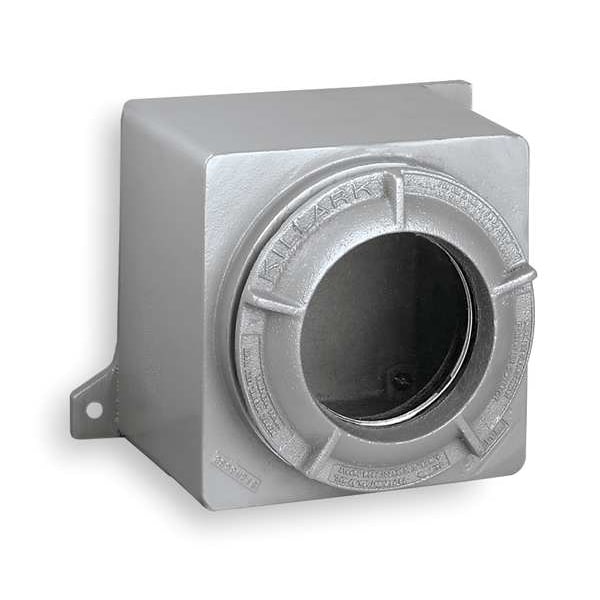

Screws Electrical Enclosures, 6 in H, 12-1/4 in D, 6 in W, 4, Copper-Free Aluminum
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 6 in |
| Nominal Height | 6 in |
| Nominal Depth | 12-1/4 in |
| NEMA Enclosure Rating | 4 |
| Enclosure Material | Copper-Free Aluminum |
| Closure Method | Screws |
| Cover Closure Type | Screw On |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Powder Epoxy/Polyester |
| Cover Style | Solid |
| NEMA Rating | 3, 4, 4X, 7 (B,C,D), 9 (E,F,G) |
| Series | GR |
| Standards | CSA File No. LR11716, IEC E x 05.0029U/IEC E x 05.0028, PTB 02 ATEX 1071U/PTB 02 ATEX 1072, UL File No. E10514/E83696 |
| Interior Panel | 2NWD4 |
| Lid Hinge | No |
| Gasket Replacement | GRM-RG |
| Safety Rating | Class 1, Division 1 |
| Mounting Type | Wall Mount |
| Max. Conduit Size | 2 in |
| Material | Aluminum |
| Enclosure Cover Type | Screw On |
| Solid / Clear Cover | Clear |
| Enclosure NEMA Rating | NEMA 4 |
| Material of Enclosure | Aluminum |
| Usable Opening Depth | 4.18 in |
| Gasket | 70 Durometer NITRILE |
| IP Rating | IP66 |
| Application | Hazardous locations due to the presence of flammable gases or vapors, combustile dusts or easily ignitable fibers or flyings, and areas which are subject to corrosion, weather, and dampness. Installations at petroleum refineries, chemical and petrochemica |
| CSA File Number | LR11716 |
| Environment - MERCH | Washdown |
| Gasket Material | Nitrile |
| Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2 |
| Compatible Panel Model Number | Not Applicable |
| Includes Knockouts | Knockouts Included |
| Package Quantity | 1 |
