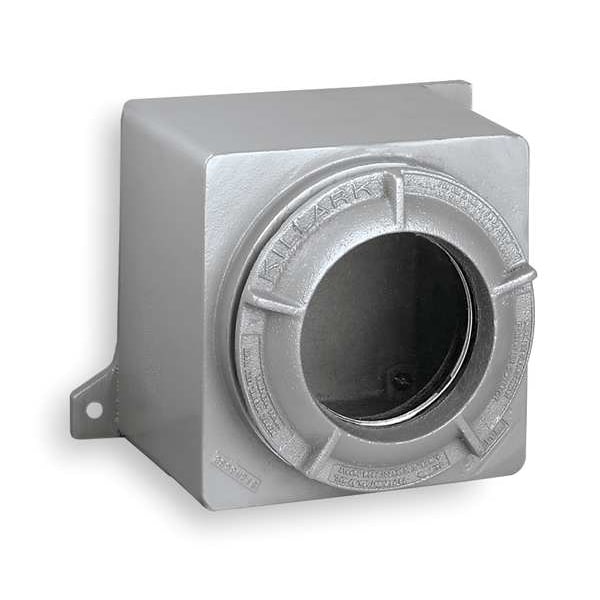

Screws Electrical Enclosures, 9-1/2 in H, 5 in D, 10-1/2 in W, 3, 4, 4X, Copper-Free Aluminum
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 10-1/2 in |
| Nominal Height | 9-1/2 in |
| Nominal Depth | 5 in |
| NEMA Enclosure Rating | 4, 4X, 3 |
| Enclosure Material | Copper-Free Aluminum |
| Closure Method | Screws |
| Cover Closure Type | Screw On |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Powder Epoxy/Polyester |
| Cover Style | Solid |
| Max. Conduit Size | 4 in |
| Material | Aluminum |
| Lid Hinge | No |
| Standards | CSA File No. LR11716, IEC E x 05.0029U/IEC E x 05.0028, PTB 02 ATEX 1071U/PTB 02 ATEX 1072, UL File No. E10514/E83696 |
| Mounting Type | Wall Mount |
| Safety Rating | Class 1, Division 1 |
| Gasket Replacement | GRH-RG |
| Interior Panel | 2NWD1 |
| NEMA Rating | 3, 4, 4X, 7 (B,C,D), 9 (E,F,G) |
| Series | GR |
| Solid / Clear Cover | Clear |
| Enclosure NEMA Rating | NEMA 4 |
| Gasket | 57 63 Durometer BUNA-N |
| IP Rating | IP66 |
| Enclosure Cover Type | Screw On |
| Usable Opening Depth | 5 in |
| Material of Enclosure | Aluminum |
| CSA File Number | LR11716 |
| Application | Hazardous locations due to the presence of flammable gases or vapors, combustile dusts or easily ignitable fibers or flyings, and areas which are subject to corrosion, weather, and dampness. Installations at petroleum refineries, chemical and petrochemica |
| Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2 |
| Gasket Material | Nitrile |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Compatible Panel Model Number | Not Applicable |
| Includes Knockouts | Knockouts Included |
| Package Quantity | 1 |
