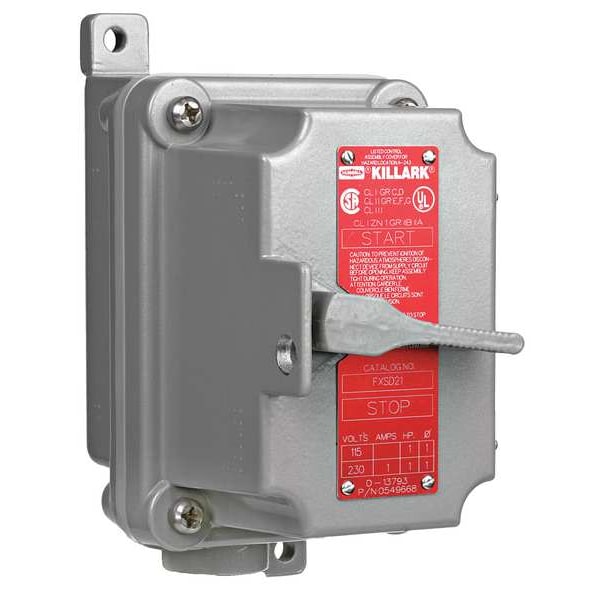

Interruptor basculante de alta calidad, diseñado para corriente eléctrica de 120/277VAC. Perfecto para uso en interiores y exteriores.
| Item | Tumbler Switch |
|---|---|
| Series | FXS |
| Type of Operator | Toggle |
| Number of Gangs | 1 |
| Switch Type | 1-Pole |
| Amps | 20 |
| Voltage | 120 to 277V AC |
| HP | 1 hp @ 120V AC, 2 hp @ 240V AC |
| Hub Style | Feed-Thru |
| Hub Size | 3/4 in |
| Depth | 4 in |
| Standards | CSA, Listed, UL |
| Safety Rating | Class I, Division 1, Groups C, D; Class I, Division 2, Groups C, D; Class I, Zones 1 & 2, Groups IIB, IIA; Class II, Division 1 & 2, Groups E, F, G; Class III |
| Mounting | Mounting Holes, Hubs |
| Width | 3-11/16 in |
| Height | 5-11/32 in |
| Legend Markings | On/Off |
| NEMA Rating | 3, 7C, 7D, 9E, 9F, 9G |
| Special Features | Pad Lockable in the On or Off Position |
| Number of Poles | 1 |
| Overall Height | 5.34 in |
| NEMA Enclosure Rating | 3, 7, 9 |
| Overall Width | 3.68 in |
| Horsepower @ 240V AC | 2 hp |
| Horsepower @ 120V AC | 1 HP |
| Voltage Rating - Maximum | 120 V AC |
| Current Rating | 20 A |
| Body Material | Aluminum |
| Overall Depth | 4 in |
| Actuator Style | Front Lever |
| Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2 |
| Products By Industry | Electrical |
| Package Quantity | 1 |
