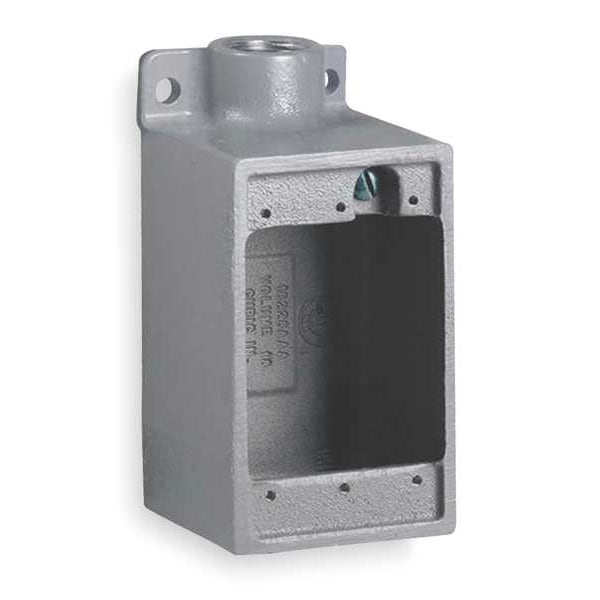

Weatherproof Electrical Box, 28 cu in, FD Box Type, 1 Gang, Malleable Iron, Rectangular Shape
| CAD Available | Yes |
|---|---|
| Item | Weatherproof Electrical Box |
| Capacity | 28 cu in |
| Box Type | FD |
| Number of Gangs | 1 Gang |
| Material | Malleable Iron |
| Length | 6.38 in |
| Overall Width | 5-1/2 in |
| Overall Depth | 2-7/8 in |
| Box Shape | Rectangular |
| Conduit Size | 3/4 in |
| Color | Silver |
| Width | 2.88 in |
| Depth | 2.88 in |
| Mounting Holes O.C. (In.) | 2.12 |
| Standards | CSA, UL Listed |
| Hub Size | 3/4 in |
| Bracket Type | Lugs |
| Number of Inlets | 1 |
| Height | 3-1/2 in |
| IP Rating | Not Applicable |
| Finish | Powder Epoxy Paint |
| Clamp Type | Not Applicable |
| Opening Shape | Rectangular |
| UL File Number | E3397 |
| CSA File Number | LR11852 |
| Hub Pattern | Dead-End |
| Special Features | Tapered threads (NPT with integral bushings). Internal grounding screw. Optional mounting feet available. Single gang style. Suitable for use in wet locations when used with gasket covers. Cast iron is suitable for concrete use. For use with FS-style cove |
| Overall Height | 2-7/8 in |
| Box Width | 4-5/8 in |
| Hub Type | Dead End |
| Box Diameter | Not Applicable |
| Box Depth | 2-7/8 in |
| Box Height | 2-7/8 in |
| Number of 3/4 in Side Knockouts | 1 |
| Ceiling Fan Rated | Not Applicable |
| Hazardous Location Specification | Not Applicable |
| Package Quantity | 1 |
