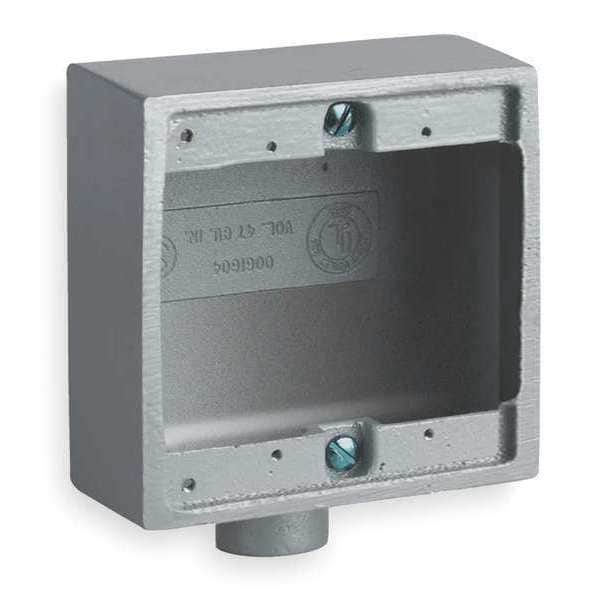

Weatherproof Electrical Box, 32 cu in, FS Box Type, 2 Gangs, Malleable Iron, Square Shape
| CAD Available | Yes |
|---|---|
| Item | Weatherproof Electrical Box |
| Capacity | 32 cu in |
| Box Type | FS |
| Number of Gangs | 2 Gangs |
| Material | Malleable Iron |
| Length | 5-1/2 in |
| Overall Width | 5-1/2 in |
| Overall Depth | 2 in |
| Box Shape | Square |
| Conduit Size | 3/4 in |
| Color | Gray |
| Width | 4.69 in |
| Bracket Type | Lugs |
| Standards | CSA, UL Listed |
| Depth | 2 in |
| Hub Size | 3/4 in |
| Number of Inlets | 1 |
| Height | 2 in |
| Finish | Powder Epoxy Paint |
| IP Rating | Not Applicable |
| Clamp Type | Not Applicable |
| Opening Shape | Rectangular |
| Hub Pattern | Dead-End |
| CSA File Number | LR11852 |
| Special Features | Tapered threads (NPT with integral bushings). Internal grounding screw. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42). Volume is 32 cu. in. |
| UL File Number | E3397 |
| Box Depth | 2 in |
| Box Width | 4-5/8 in |
| Hub Type | Dead End |
| Box Height | 4-11/16 in |
| Box Diameter | Not Applicable |
| NEMA Enclosure Rating | 7CD |
| Overall Height | 4-11/16 in |
| Number of 3/4 in Side Knockouts | 1 |
| Hazardous Location Specification | Not Applicable |
| Ceiling Fan Rated | Not Applicable |
| Package Quantity | 1 |
