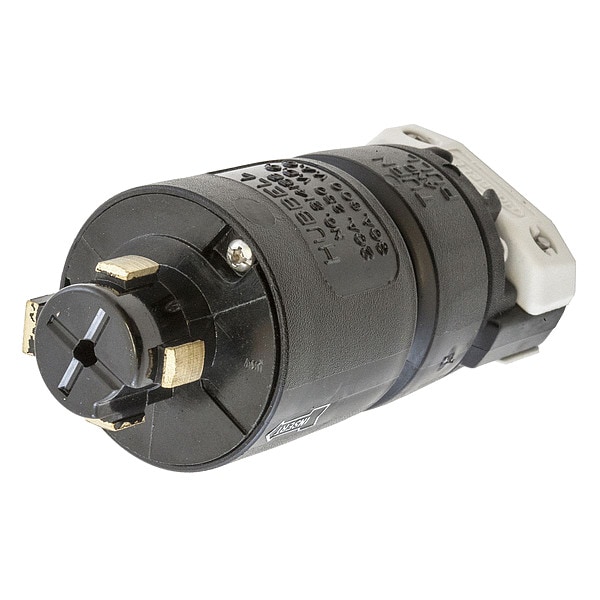

Enchufe de bloqueo, 20/30 A, 250V DC / 600V AC, 3 polos, 3 fases, 4 hojas, recto, terminales de tornillo.
| Item | Locking Plug |
|---|---|
| Item - Plugs and Receptacles | Locking Plug |
| Wiring Style | Standard |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Length | 2.33 in |
| Grade - Plugs and Receptacles | Industrial |
| Amps - Plugs and Receptacles | 30/20 |
| NEMA Plug Configuration - Plugs and Receptacles | Non-NEMA, 30A |
| Voltage - Plugs and Receptacles | 600V AC/250V DC |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase | Three |
| Corrosion Resistant | No |
| Cord Size | 0.63 to 1.2 in |
| Amps - Plugs and Receptacles | 30/20 |
| Voltage | 600VAC/250VDC |
| IP Rating | IP30 |
| Standards | CSA Certified, UL Listed |
| Material | Nylon |
| Color - Plugs and Receptacles | Black |
| Amps | 30/20 |
| Grade | Industrial |
| Color | Black |
| Antimicrobial | No |
| NEMA Configuration | Non-NEMA, 4 Blade |
| Special Features | 5.63 in H x 2.33 in L x 0.94 in W |
| Minimum Operating Temperature | -40 deg C |
| UL 94 Flammability Rating | HB |
| Grounding | Grounded |
| Housing Color | Black, White |
| Market | Industrial |
| Housing Material | Nylon |
| Overall Length | 2.33 in |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Current Rating | 20/30 A |
| For Minimum Cable Diameter | 0.7 in |
| Polarized | Yes |
| Connection Orientation | Straight |
| Voltage Rating | 250V DC/600V AC |
| Shrouded | No |
| Blade Material | Brass |
| Number of Blades | 4 |
| Minimum Wire Size | 10 AWG |
| NEMA Plug Configuration | Non-NEMA |
| Wire Connection Type | Screw Terminals |
| Maximum Operating Temperature | 75 deg C |
| For Maximum Cable Diameter | 1.2 in |
| Maximum Wire Size | 6 AWG |
| Body Length | 2.33 in |
| Outside Diameter | 2.33 in |
| Wire Size | #10 AWG to #6 AWG |
| Temp. Rise | Max 30C Temp. Rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Flammability | UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors |
| Weight (Lbs.) | 0.8 |
| Height | 5.63 in |
| Item Type | 20A / 30A Hubbellock® Plug |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Width | 0.94 in |
| Industry Standard(s) | Certified to CSA Standard Listed to UL Standard |
| Amperage Rating | 20/30 A |
| Cord Range | 0.700"-1.200" |
| Cable Range | 0.7 to 1.2 in |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage Withstand - 2,000V minimum Environmental - Flammability - UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors Environmental - Moisture Resistance - IP30 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C,Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #10 AWG - #6 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Type | Plugs |
| Current / Amperage Rating | 20/30 A |
| Dimensions | 2.33 in x 0.94 in x 5.63 in |
| Dielectric Strength | Withstands 2,000V minimum |
| Voltage Rating Description | 250 VDC/600 VAC |
| Package Quantity | 1 |
