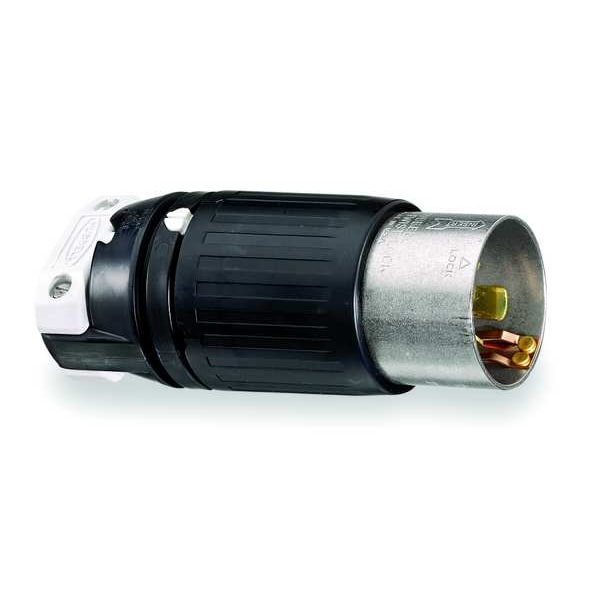

Enchufe de bloqueo, 50 A, 480V CA, 3 polos, calibre 10 AWG a 6 AWG, terminales de tornillo, negro/blanco.
| Item | Locking Plug |
|---|---|
| Item - Plugs and Receptacles | Locking Plug |
| Wiring Style | Standard |
| Shrouded / Non-Shrouded | Shrouded |
| Length | 6.37 in |
| Grade - Plugs and Receptacles | Industrial |
| Amps - Plugs and Receptacles | 50 |
| NEMA Plug Configuration - Plugs and Receptacles | Non-NEMA, 50A |
| Voltage - Plugs and Receptacles | 480V AC |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase | Three |
| NEMA Configuration | Non-NEMA, 4 Blade |
| Material | Super Tough Nylon |
| Standards | CSA Certified C22.2 No. 42, UL 498 |
| Color | Black, White |
| Antimicrobial | No |
| Cord Size | 3/4 to 1-1/8 in |
| Voltage | 480VAC |
| Corrosion Resistant | No |
| Grade | Industrial |
| IP Rating | IP20 |
| Color - Plugs and Receptacles | Black, White |
| Amps | 50 |
| Application | Extra Heavy Duty Industrial |
| Voltage Rating | 480V AC |
| For Location | Indoor |
| Overall Length | 6.37 in |
| Minimum Operating Temperature | -40 deg C |
| Blade Material | Brass |
| For Environment | Dry |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Minimum Wire Size | 10 AWG |
| Current Rating | 50 A |
| Shrouded | Yes |
| Housing Color | Black, White |
| Wire Connection Type | Screw Terminals |
| UL 94 Flammability Rating | HB |
| For Maximum Cable Diameter | 1-1/4 in |
| Polarized | Yes |
| Connection Orientation | Straight |
| Maximum Operating Temperature | 75 deg C |
| Housing Material | Nylon |
| Number of Blades | 4 |
| Market | Industrial |
| NEMA Plug Configuration | Non-NEMA |
| Body Length | 6.37 in |
| Maximum Wire Size | 6 AWG |
| Grounding | Grounded |
| For Minimum Cable Diameter | 0.83 in |
| Outside Diameter | 2.563 in |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Weight (Lbs.) | 1.25 |
| Flammability | UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors. |
| Temp. Rise | Max 30C Temp. Rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Wire Size | #10 AWG to #6 AWG |
| Connectivity | Pressure Terminal Screws |
| Voltage Rating Description | 3-Phase Delta 480 VAC |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better Environmental - Operating Temperatures - Maximum continuous 75°C minimum to40°C (w/o impact) Mechanical - Terminal Accommodation - #10 AWG - #6 AWG stranded copper wire only |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Listed to UL 498 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Amperage Rating | 50 A |
| Display Size | Standard Sized |
| Material - Mounting Hardware | Cord Mounted |
| Item Type | Plug |
| Dimensions | 6.37 in x 2.56 in x 2.56 in |
| Cord Type | All Listed Portables |
| Height | 2.56 in |
| Width | 2.56 in |
| Dielectric Strength | Withstands 2,000V minimum |
| Package Quantity | 1 |
