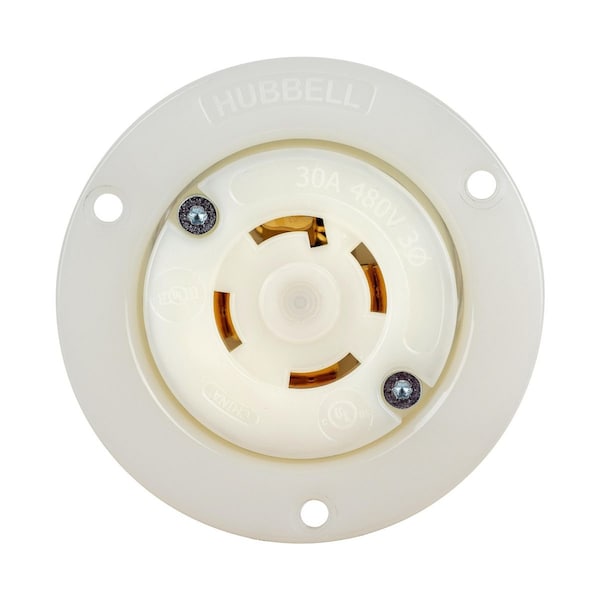

Locking Receptacle
| Item | Locking Receptacle |
|---|---|
| NEMA Configuration | L16-30 |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase | Three |
| Wiring Style | Standard |
| IP Rating | IP20 |
| Standards | CSA C22.2, Federal Specification W-C-596, UL 498 |
| Features | Accepts Slotted, Phillips, and Robertson Head Drivers |
| For Environment | Dry |
| Horsepower Rating | 10 HP |
| Current Rating | 30 A |
| Mount Hole Center-to-Center Height | 3.28 in |
| Contact Material | Brass |
| Maximum Operating Temperature | 75 deg C |
| Minimum Operating Temperature | -40 Degrees C |
| Minimum Wire Size | 16 AWG |
| Connection Orientation | Straight |
| Voltage Rating | 480V AC |
| UL 94 Flammability Rating | V-2 |
| Maximum Wire Size | 8 AWG |
| NEMA Enclosure Rating | 1 |
| Grounding | Grounded |
| Overall Depth | 2.27 in |
| Cover Type | No Cover |
| For Location | Indoor |
| AFCI | No |
| NEMA Receptacle Configuration | L16-30R |
| Flange Type | Non-Flanged |
| Housing Color | White |
| Includes Mounting Hardware | Yes |
| Flange Diameter | 2.23 in |
| Face Plate Width | 1.7 in |
| Polarized | Yes |
| Shrouded | No |
| Housing Material | Nylon |
| Number of Gangs | 1 |
| Market | Industrial |
| Resistance Properties | Impact Resistant |
| Includes | Mounting Hardware |
| Face Plate Height | 2.77 in |
| Face Diameter | 3.06 in |
| Package Quantity | 1 |
