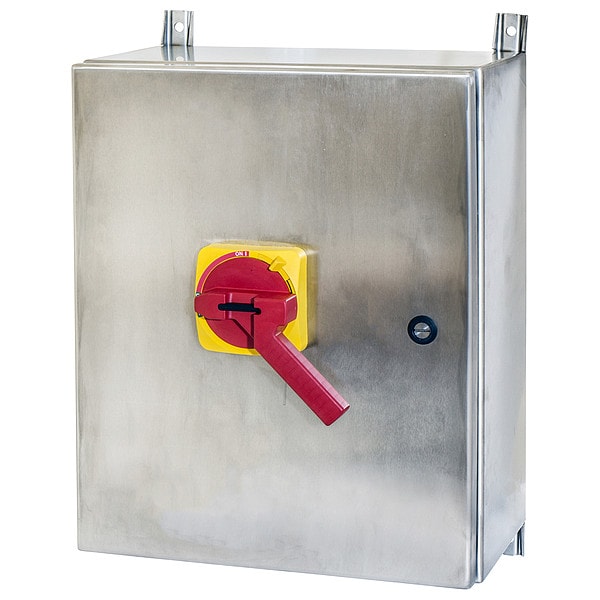

Desconexión no fusible, 200A sin fusibles, 4X, 600V AC, NEMA 12, UL4X
| Item | Disconnect,200A Unfused,4X |
|---|---|
| Protection Method | Nonfusible |
| Amps | 200 |
| Duty | Heavy Duty |
| Voltage | 600 V AC |
| Phase | 3 |
| HP | 200 HP @ 600V AC |
| NEMA Enclosure Type | 12, UL4X |
| Material | Stainless Steel |
| Number of Wires | 5 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Handle Color | Red |
| Neutral Assembly Included | Yes |
| Includes | 1-1/4 in Hub, Mounting Feet |
| Height | 21.9 in |
| Standards | UL/CSA |
| Series | Non-Fused |
| Depth | 11-1/2 in |
| Width | 16 in |
| Enclosure Type | Enclosed |
| Type | Disconnect Switches |
| Resistance Properties | Chemical-Resistant, Oil-Resistant, Water-Resistant |
| NEMA Enclosure Rating | 4X |
| For Fuse Class | Not Applicable |
| Environment | Indoor, Outdoor |
| Handle Type | Rotary |
| Horsepower @ 600V AC | 200 HP |
| Current Rating | 200 A |
| For Environment | Indoor & Outdoor Rated |
| Housing Material | Stainless Steel |
| Current / Amperage Rating | 200 A |
| Amperage Rating | 200 A |
| Style | Heavy Duty |
| Application | Labelless |
| Package Quantity | 1 |
