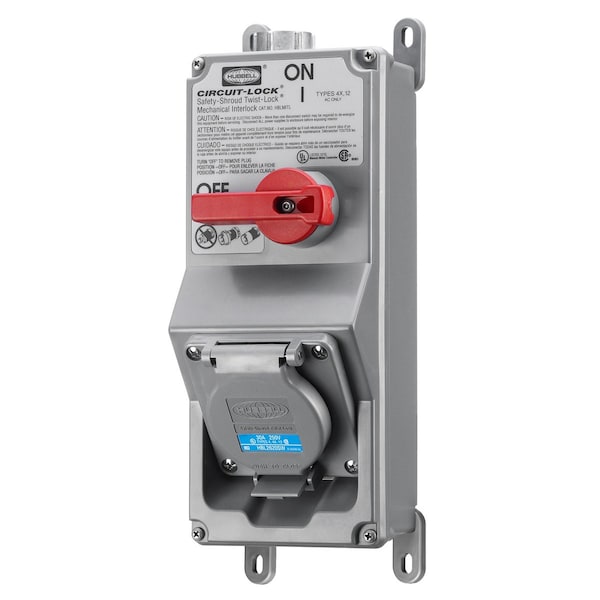

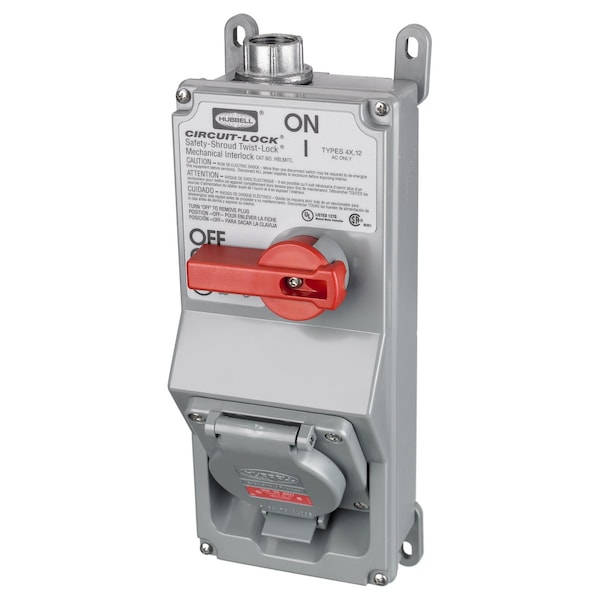

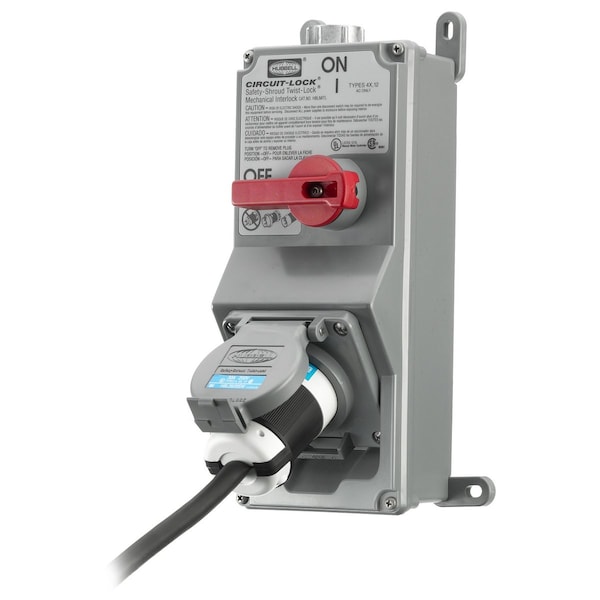

Interruptor de Desconexión No Fusible, 30 A, 600V AC, 3 polos, NEMA 12K, 4, 4X.
| Item | Disconnect Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | Heavy Duty |
| Amps | 30 |
| Voltage | 600 V AC |
| Phase | 3 |
| HP | 15 hp @ 600V AC |
| NEMA Enclosure Type | 4, 12K, 4X |
| IP Rating | 66 |
| Number of Wires | 5 |
| Material | Non-Metallic |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Fusible / Nonfusible | Nonfusible |
| Depth | 4.2 in |
| Standards | UL/CSA |
| Width | 4.9 in |
| Height | 11.4 in |
| For Use With | Twist-Lock(R) Receptacles |
| Product Type | Switched Twist-Lock |
| Mounting | External full adjustable feet |
| Maximum Voltage | 690 V AC |
| Compatible with Manufacturer Model Number | VLS3P016D1, VLS3P025D1, VLS3P032D1, VLS3P040D1 |
| Current Rating | 30 A |
| NEMA Enclosure Rating | 12K, 4, 4X |
| Color | Gray |
| Mounting Mechanism | Door |
| For Disconnect Switch Size | 20 A, 30 A |
| Resistance Properties | Compact-Resistant, Corrosion-Resistant |
| Environment | Indoor, Outdoor |
| Compatible with Manufacturer Model Number [NEW] | VLS3P016D1, VLS3P025D1, VLS3P032D1, VLS3P040D1 |
| Compatible with Manufacturer Part Number | VLS3P016D1, VLS3P025D1, VLS3P032D1, VLS3P040D1 |
| Compatible Manufacturer Part Number | VLS3P016D1, VLS3P025D1, VLS3P032D1, VLS3P040D1 |
| Compatible Manufacturer Model Number | VLS3P016D1, VLS3P025D1, VLS3P032D1, VLS3P040D1 |
| For Use with Mfr. Model Number | VLS3P016D1, VLS3P025D1, VLS3P032D1, VLS3P040D1 |
| Device Color | Gray |
| Flammability | Meets UL 94V0 material classification, UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors. |
| Moisture Resistance | IP66, IP66 suitability |
| UV Resistance | All exposed materials are UV stabilized |
| Terminal Accommodation | 30A #10 AWG |
| Dielectric Voltage Withstand | 2,000V minimum |
| Temperature Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Operating Temperatures | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Product Item | Switched Mechanically Interlocked Enclosure |
| Dielectric Voltage | Withstands 3,000V minimum |
| Max. Working Voltage | 600V RMS |
| Impact Resistance | In accordance with UL 746C |
| Listings | UL/CSA |
| Terminal Identification | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green), In accordance with UL, CSA |
| Operating Temperature | Maximum continuous +75°C; Minimum continuous -40°C |
| Operations | Mechanical 10,000 cycles; Electrical 6,000 cycles |
| Package Quantity | 1 |
