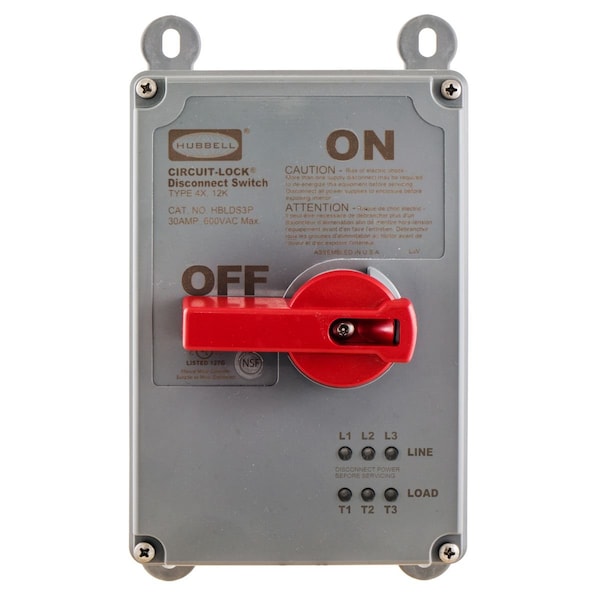

Interruptor de desconexión no fusible con iluminación LED, 30 A, 600 V CA, 3 polos, NEMA 4X.
| Item | Disconnect Switch w/LED Illumination |
|---|---|
| Protection Method | Nonfusible |
| Amps | 30 |
| Voltage | 600 V AC |
| Number of Poles | 3 |
| NEMA Enclosure Type | 4X |
| Phase | 3 |
| HP | 15 hp @ 600V AC |
| Material | PBT |
| Contact Form | 3PST |
| IP Rating | 69 |
| Duty | Heavy Duty |
| Use | Isolate or Disconnect A Load |
| Width | 5.12 in |
| Standards | NSF, cULus Listed |
| Height | 7.64 in |
| Fuse Kit (Class R) | Non-Fusible |
| Depth | 4.15 in |
| Number of Wires | 3 |
| Includes | 3/4 in Hub |
| Current Rating | 30 A |
| Standard Conduit Size | 3/4 in |
| NEMA Enclosure Rating | 4X |
| Housing Material | PBT |
| For Fuse Class | Not Applicable |
| Enclosure Type | Enclosed |
| Features | LED Status Lights |
| Environment | Indoor, Outdoor |
| Handle Color | Red |
| For Environment | Indoor & Outdoor Rated |
| Horsepower @ 600V AC | 15 HP |
| Style | Heavy Duty |
| Series | Non-Fused |
| Type | Disconnect Switches |
| Application | Labelless, LED Indicators |
| Current / Amperage Rating | 30 A |
| Amperage Rating | 30 A |
| Package Quantity | 1 |
