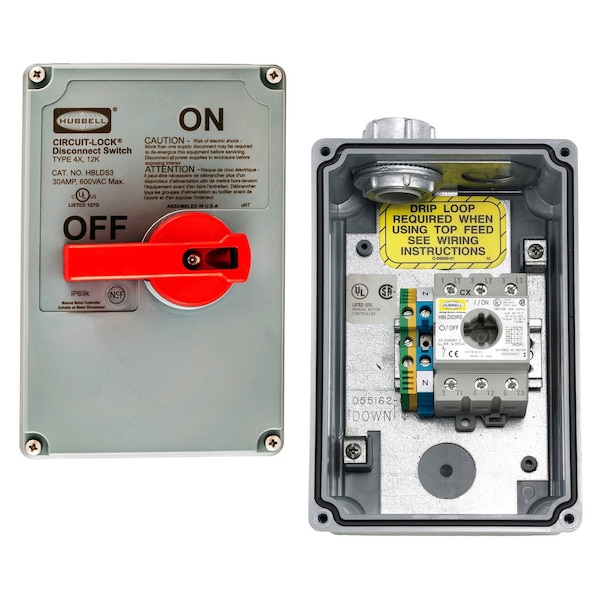

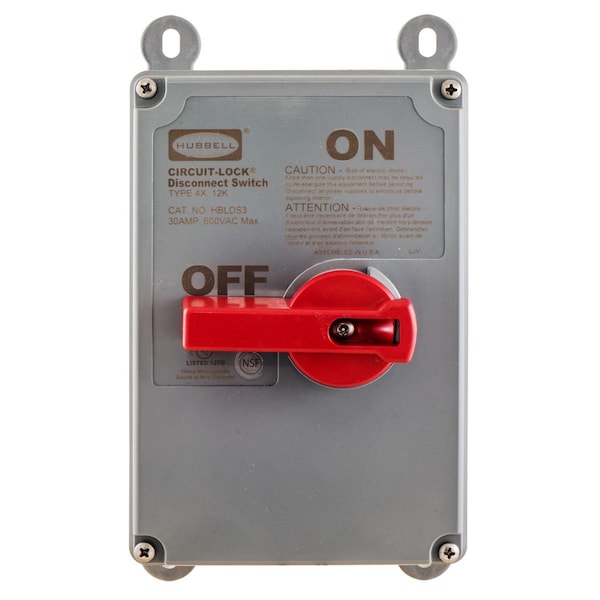

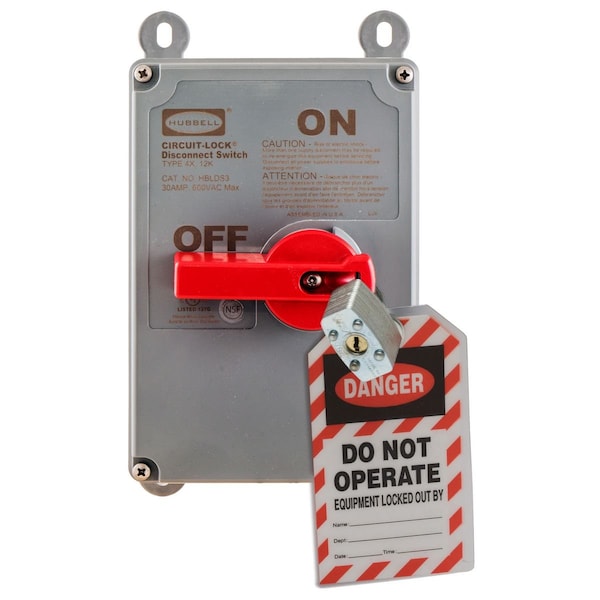

Interruptor de desconexión cerrado no fusible, 30 A, 600V CA, 3 polos, NEMA 12K, 4, 4X.
| Item | Enclosed Disconnect Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | Heavy Duty |
| Amps | 30 |
| Voltage | 600 V AC |
| Phase | 3 |
| HP | 15 hp @ 600V AC |
| NEMA Enclosure Type | 4, 12K, 4X |
| IP Rating | 66 |
| Material | Non-Metallic |
| Number of Wires | 5 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Height | 7.6 in |
| Includes | 3/4 in Conduit Hub, Mounting Feet |
| Neutral Assembly Included | Yes |
| Width | 5.1 in |
| Depth | 4.1 in |
| Fusible / Nonfusible | Nonfusible |
| Standards | UL/CSA |
| Handle Color | Red |
| Features | Adjustable Mounting Feet |
| Switch Type | Three Pole Unfused |
| Enclosure Type | Enclosed |
| Current Rating | 30 A |
| Environment | Indoor, Outdoor |
| Horsepower @ 240V AC | 5 HP |
| Resistance Properties | Corrosion-Resistant, Impact-Resistant, UV-Resistant |
| Mounting Style | Surface Mount |
| Standard Conduit Size | 3/4 in |
| Housing Material | Non-Metallic |
| Horsepower @ 600V AC | 15 HP |
| NEMA Enclosure Rating | 4X |
| For Fuse Class | Not Applicable |
| Horsepower @ 480V AC | 10 HP |
| For Environment | Indoor & Outdoor Rated |
| Amperage | 30 A |
| Operating Temperatures | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Listing and Certifications | UL Listed and CSA Certified |
| Products By Industry | Electrical;Fabricated Metals |
| Package Quantity | 1 |
