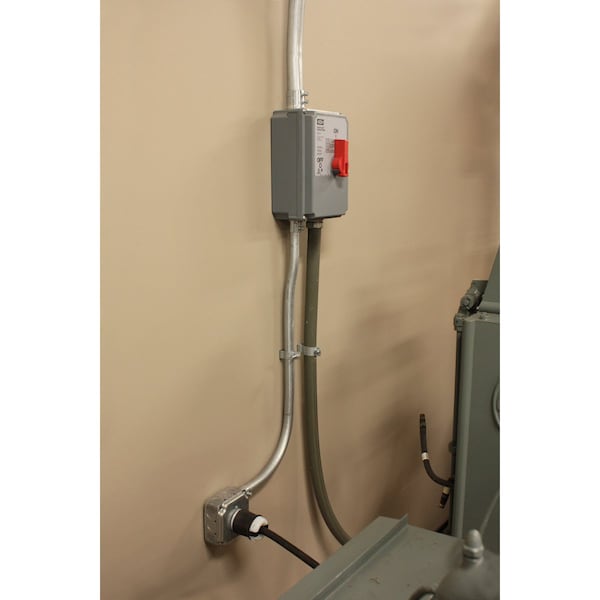

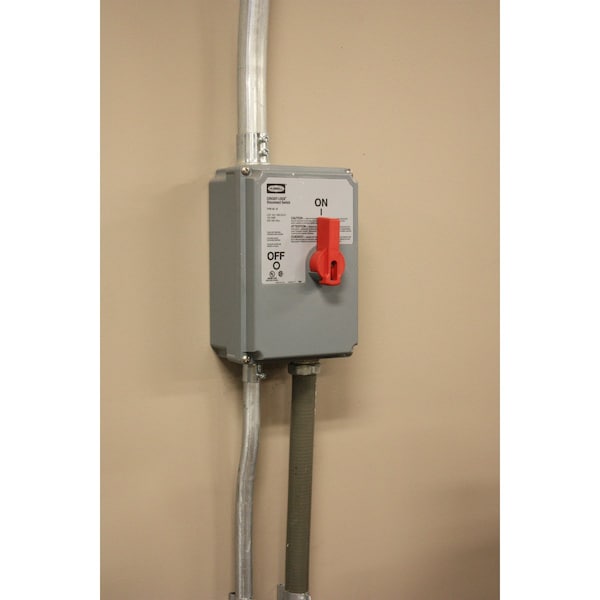

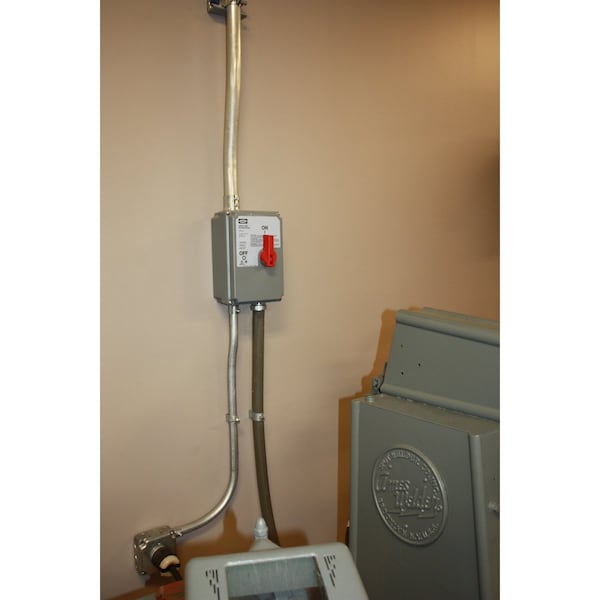

Interruptor de desconexión cerrado no fusible, 600V CA, NEMA 12K, 4, 4X.
| Item | Enclosed Disconnect Switch |
|---|---|
| Protection Method | Nonfusible |
| Amps | 100 |
| Duty | Heavy Duty |
| Voltage | 600 V AC |
| Phase | 3 |
| HP | 50 hp @ 600V AC |
| NEMA Enclosure Type | 4, 12K, 4X |
| IP Rating | IP69K |
| Material | Non-Metallic |
| Number of Wires | 5 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Standards | UL/CSA |
| Depth | 5.9 in |
| Neutral Assembly Included | Yes |
| Width | 6.9 in |
| Height | 10 in |
| Fusible / Nonfusible | Nonfusible |
| Handle Color | Red |
| Switch Type | Three Pole Unfused |
| Enclosure Type | Enclosed |
| Horsepower @ 600V AC | 50 HP |
| Housing Material | Non-Metallic |
| Environment | Indoor, Outdoor |
| For Fuse Class | Not Applicable |
| NEMA Enclosure Rating | 12K, 4X |
| For Environment | Indoor, Indoor Rated, Outdoor Rated |
| Resistance Properties | Corrosion-Resistant, Impact-Resistant, UV-Resistant |
| Current Rating | 100 A |
| Standard Conduit Size | 1-1/4 in |
| Listing and Certifications | UL Listed and CSA Certified |
| Operating Temperatures | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Amperage | 100 A |
| Products By Industry | Electrical |
| Package Quantity | 1 |
