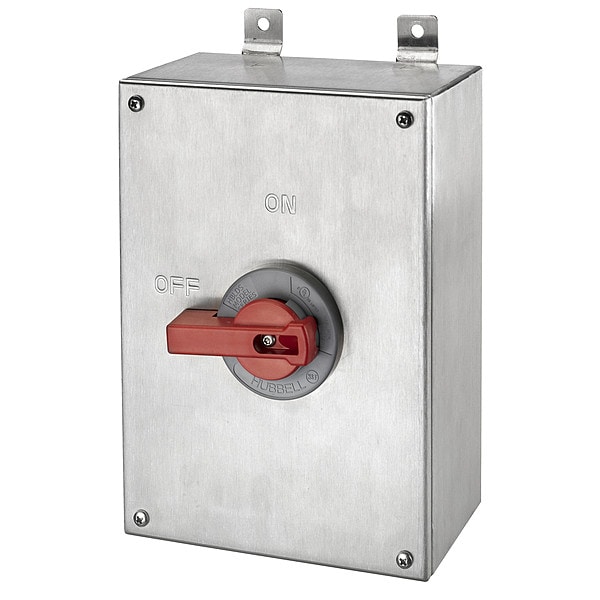

Interruptor de desconexión cerrado no fusible, 600V CA, NEMA 12K, 4, 4X.
| Item | Enclosed Disconnect Switch |
|---|---|
| Protection Method | Nonfusible |
| Amps | 100 |
| Duty | Heavy Duty |
| Voltage | 600 V AC |
| Phase | 3 |
| HP | 50 hp @ 600V AC |
| NEMA Enclosure Type | 4, 12K, 4X |
| IP Rating | 54 |
| Number of Wires | 5 |
| Material | 304 Stainless Steel |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Width | 7.3 in |
| Fusible / Nonfusible | Nonfusible |
| Standards | UL/CSA |
| Height | 10.3 in |
| Neutral Assembly Included | Yes |
| Depth | 6 in |
| Includes | Auxiliary Contact |
| Series | Non-Fused |
| Handle Color | Red |
| Type | Disconnect Switches |
| Enclosure Type | Enclosed |
| Maximum Mounting Depth | 18 in |
| Resistance Properties | Impact-Resistant, UV-Resistant |
| For Environment | Indoor & Outdoor Rated |
| Environment | Indoor, Outdoor |
| NEMA Enclosure Rating | 4X |
| Standard Conduit Size | 1-1/4 in |
| Current Rating | 100 A |
| Horsepower @ 600V AC | 50 HP |
| For Fuse Class | Not Applicable |
| Minimum Mounting Depth | 6.63 in |
| Horsepower @ 240V AC | 7.5 HP |
| Horsepower @ 480V AC | 15 HP |
| Mounting Style | Surface Mount |
| Housing Material | Stainless Steel |
| Application | Labelless |
| Ingress Protection | IP69K |
| Style | Heavy Duty |
| Dielectric Strength | Withstands 3000V AC minimum |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Mounting Method | Feet are fixed |
| Amperage Rating | 100 A |
| Current / Amperage Rating | 100 A |
| Industry Standard(s) | UL Listed |
| Length | 11.63 in |
| Dimensions | 11.63 in x 7.3 in x 5.39 in |
| Performance | Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Mechanical - Product Identification - Ratings are a permanent part of the device |
| Wattage | 360,000 |
| Insulation | Insulated Body |
| Voltage Rating Description | 600V AC/DC |
| Number Of Pins | 1) In, 1) Out |
| Item Type | Gender Reverser |
| Package Quantity | 1 |
