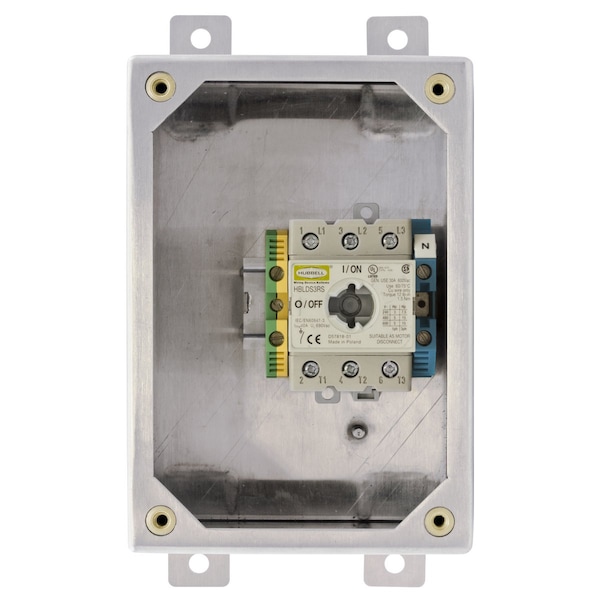

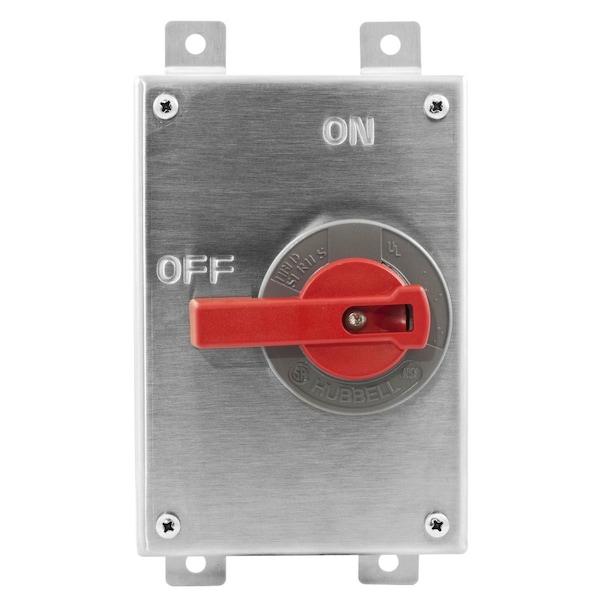

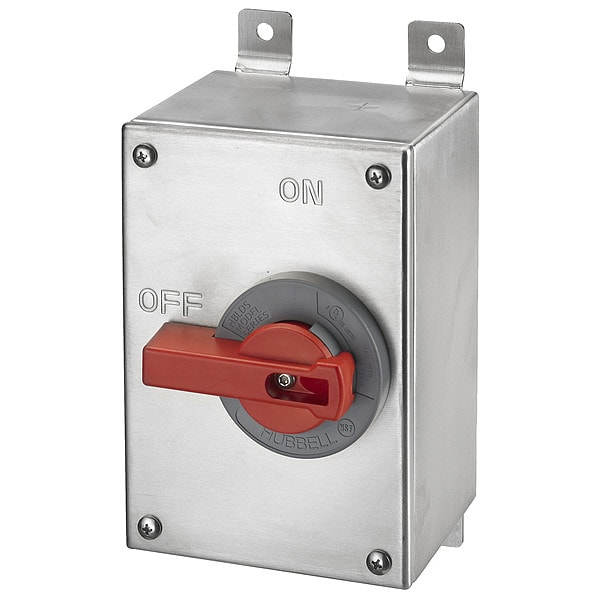

Interruptor de Desconexión Cerrado No Fusible, 600V AC, NEMA 12K, 4, 4X
| Item | Enclosed Disconnect Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | Heavy Duty |
| Amps | 30 |
| Voltage | 600 V AC |
| Phase | 3 |
| HP | 15 hp @ 600V AC |
| NEMA Enclosure Type | 4, 12K, 4X |
| IP Rating | 54 |
| Material | Stainless Steel |
| Number of Wires | 5 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Fusible / Nonfusible | Nonfusible |
| Height | 7 in |
| Width | 4.9 in |
| Neutral Assembly Included | Yes |
| Depth | 5.4 in |
| Includes | 3/4 in Conduit Hub |
| Standards | UL/CSA |
| Handle Color | Red |
| Enclosure Type | Enclosed |
| Resistance Properties | Impact-Resistant, UV-Resistant |
| Standard Conduit Size | 3/4 in |
| Horsepower @ 480V AC | 40 HP |
| Current Rating | 30 A |
| NEMA Enclosure Rating | 4X |
| Housing Material | Stainless Steel |
| Horsepower @ 240V AC | 20 HP |
| Horsepower @ 600V AC | 15 HP |
| Environment | Indoor, Outdoor |
| For Environment | Indoor & Outdoor Rated |
| Mounting Style | Surface Mount |
| For Fuse Class | Not Applicable |
| Industry Standard(s) | UL Listed |
| Length | 8.38 in |
| Application | Labelless |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Mounting Method | Feet are fixed |
| Current / Amperage Rating | 30 A |
| Dielectric Strength | Withstands 3000V AC minimum |
| Amperage Rating | 30 A |
| Package Quantity | 1 |
