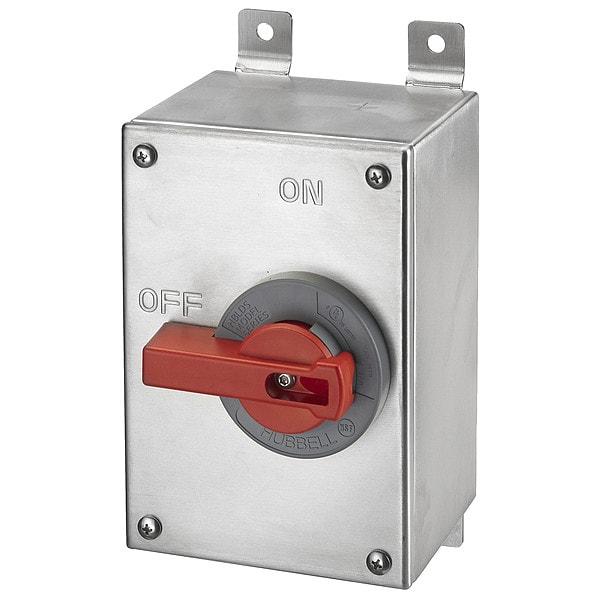

Interruptor de desconexión cerrado no fusible, 600V CA, NEMA 12K, 4, 4X
| Item | Enclosed Disconnect Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | Heavy Duty |
| Amps | 60 |
| Voltage | 600 V AC |
| Phase | 3 |
| HP | 50 hp @ 600V AC |
| NEMA Enclosure Type | 4, 12K, 4X |
| IP Rating | 54 |
| Material | Stainless Steel |
| Number of Wires | 5 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Depth | 6 in |
| Standards | UL/CSA |
| Width | 7.3 in |
| Height | 10.3 in |
| Neutral Assembly Included | Yes |
| Fusible / Nonfusible | Nonfusible |
| Includes | Auxiliary Contact |
| Series | Non-Fused |
| Handle Color | Red |
| Type | Disconnect Switches |
| Enclosure Type | Enclosed |
| Resistance Properties | Impact-Resistant, UV-Resistant |
| Environment | Indoor, Outdoor |
| Standard Conduit Size | 1-1/4 in |
| Horsepower @ 600V AC | 50 HP |
| Housing Material | Stainless Steel |
| Current Rating | 60 A |
| For Environment | Indoor & Outdoor Rated |
| For Fuse Class | Not Applicable |
| NEMA Enclosure Rating | 4X |
| Industry Standard(s) | UL Listed |
| Length | 11.63 in |
| Amperage Rating | 60 A |
| Ingress Protection | IP69K |
| Current / Amperage Rating | 60 A |
| Mounting Method | Feet are fixed |
| Dielectric Strength | Withstands 3000V AC minimum |
| Application | Labelless |
| Style | Heavy Duty |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current & voltage Electrical - Dielectric Voltage - Withstands 3000V AC minimum Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability - UL94-5VA and V0 Classification Environmental - Operating Temperature - Max Continuous 75°C,Min Continuous -40°C w/o impact Environmental - UV Resistance - All materials are UV stabilized Mechanical - Impact Resistance - In accordance with UL 746C Mechanical - Mounting - Stainless Steel - Feet are fixed Mechanical - Product Identification - Identification and ratings are part of external label Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions |
| Dimensions | 11.63 in x 7.3 in x 5.39 in |
| Package Quantity | 1 |
