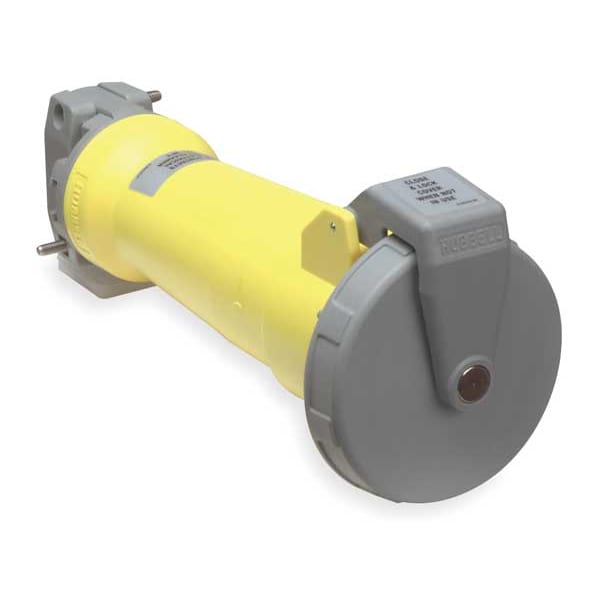

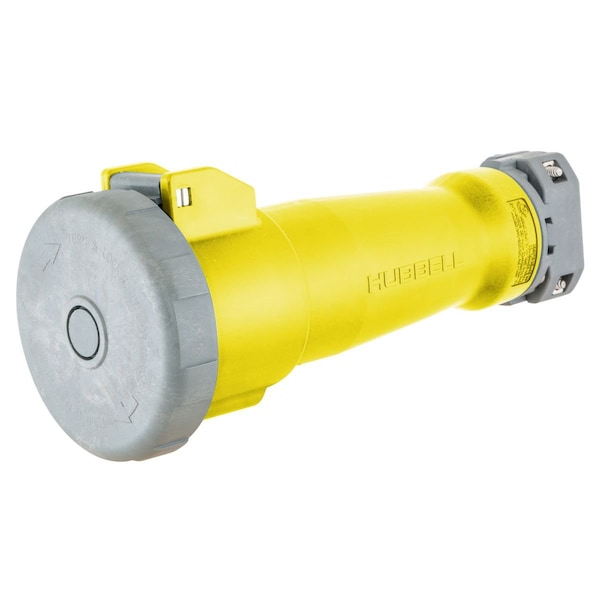

Pin and Sleeve Connector, 100A, 125/250V
| Item - Plugs and Receptacles | Sleeve Connector, Watertight Pin |
|---|---|
| Body Material - Pin and Sleeve | Nylon |
| Amps - Plugs and Receptacles | 100 |
| Voltage - Plugs and Receptacles | 125/250V AC |
| Color - Plugs and Receptacles | Yellow |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase - Electrical | 1 |
| Switch Rated | No |
| Grounding Style | IEC |
| Standards | CSA Certified LR280C, UL Classified to IEC 60309-1 IEC 60309-2, UL E146033 |
| Voltage | 125/250VAC |
| Phase | Single |
| Color | Yellow |
| Item | Pin and Sleeve Connector |
| Body Material | Nylon |
| Amps | 100 |
| Features | Pin Chamber Confines Arcing within the Interior Chamber, Spring-Loaded, Gasketed Cover for Dust-Tight Seal, Watertight Neoprene Sealing Glands for Reliable Seal |
| Overall Length | 13.14 in |
| Wire Connection Type | Screw Terminals |
| Contact Material | Brass |
| Maximum Wire Size | 1/0 AWG |
| Current Rating | 100 A |
| For Location | Outdoor |
| Outside Diameter | 5.06 in |
| UL 94 Flammability Rating | V-0 |
| Face Diameter | 4.71 in |
| Minimum Operating Temperature | -40 Degrees C |
| For Maximum Cable Diameter | 1.94 in |
| IP Rating | IP67 |
| Voltage Rating | 125/250V AC |
| Reverse Service | No |
| Minimum Wire Size | 3 AWG |
| For Environment | Marine |
| Cap Type | Spring-Loaded Cap |
| Power Indicating Light | No |
| Housing Material | PBT |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight |
| Shrouded | Yes |
| Connection Orientation | Straight |
| Housing Color | Yellow |
| For Minimum Cable Diameter | 1.065 in |
| Maximum Operating Temperature | 75 Degrees C |
| Grounding | Grounded |
| NEMA Enclosure Rating | 4X |
| Package Quantity | 1 |
