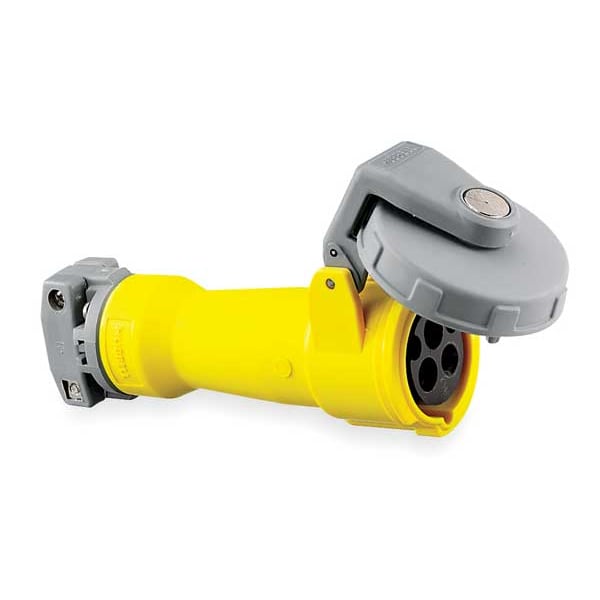

Pin and Sleeve Connector, 100A, 125/250V
| Item - Plugs and Receptacles | Sleeve Connector, Watertight Pin |
|---|---|
| Body Material - Pin and Sleeve | Nylon |
| Amps - Plugs and Receptacles | 100 |
| Voltage - Plugs and Receptacles | 125/250V AC |
| Color - Plugs and Receptacles | Yellow |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase - Electrical | 1 |
| Switch Rated | No |
| Grounding Style | IEC |
| Standards | CSA Certified LR280C, UL Classified to IEC 60309-1 IEC 60309-2, UL E146033 |
| Body Material | Nylon |
| Phase | Single |
| Voltage | 125/250VAC |
| Amps | 100 |
| Item | Pin and Sleeve Connector |
| Color | Yellow |
| Features | Gasketed Locking Rring, Pin Chamber Confines Arcing within the Interior Chamber, Watertight Neoprene Sealing Glands for Reliable Seal |
| Cap Type | No Cap or Cover |
| Minimum Wire Size | 3 AWG |
| Shrouded | Yes |
| IP Rating | IP56 |
| Housing Color | Yellow |
| For Maximum Cable Diameter | 1.94 in |
| Outside Diameter | 5.06 in |
| Connection Orientation | Straight |
| UL 94 Flammability Rating | V-0 |
| Voltage Rating | 125/250V AC |
| Maximum Operating Temperature | 75 Degrees C |
| For Environment | Marine |
| For Minimum Cable Diameter | 1.065 in |
| Contact Material | Brass |
| Current Rating | 100 A |
| For Location | Outdoor |
| Maximum Wire Size | 1/0 AWG |
| NEMA Enclosure Rating | 4X |
| Power Indicating Light | No |
| Housing Material | PBT |
| Grounding | Grounded |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight |
| Reverse Service | No |
| Wire Connection Type | Screw Terminals |
| Overall Length | 13.14 in |
| Minimum Operating Temperature | -40 Degrees C |
| Type | Watertight Connector |
| Insulation | Insulated Body |
| Industry Standard(s) | CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Listed, File E146033 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstand 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 Mechanical - Product Identification - Ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Style | Reverse Service |
| Environmental Conditions | Watertight |
| Item Type | Standard |
| Application | Marine Wiring Devices |
| Conductor Range | #3 AWG to #1/0 AWG |
| Current / Amperage Rating | 100 A |
| Amperage Rating | 100 A |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Nema Rating | Non-NEMA |
| Voltage Rating Description | 125/250 VAC |
| Material - Mounting Hardware | Cord Mounted |
| Connectivity | Pressure Terminal Screws |
| Series | Corrosion Resistant |
| Number Of Conductors | 4-Wire Grounding |
| Display Size | Standard |
| Package Quantity | 1 |
