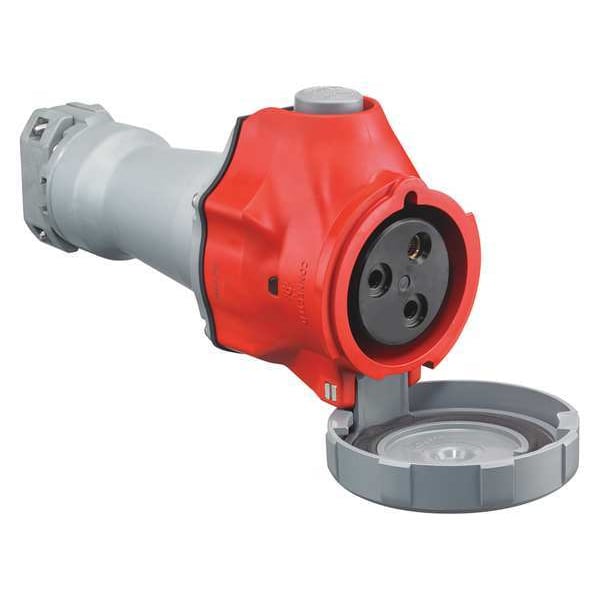

Pin and Sleeve Connector, 2 Poles, 3 Wires
| Item - Plugs and Receptacles | Sleeve Connector, Watertight Pin |
|---|---|
| Body Material - Pin and Sleeve | Valox 357 |
| Amps - Plugs and Receptacles | 60 |
| Voltage - Plugs and Receptacles | 480V AC |
| Color - Plugs and Receptacles | Red |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Phase - Electrical | 1 |
| Switch Rated | Yes |
| Grounding Style | IEC |
| Item | Watertight Pin and Sleeve Connector |
| Standards | CSA Certified LR280C, UL Classified to IEC 60309-1 IEC 60309-2, UL E146033 |
| Features | Spring-Loaded Disconnect Button |
| Power Indication | Yes |
| HP | 15 HP |
| NEMA Rating | 4x |
| Color | Red |
| Phase | Single |
| Compatible with Series | Advantage Switch-Rated |
| Horsepower Rating | 15 HP |
| For Minimum Cable Diameter | 1/2 in |
| Outside Diameter | 5.17 in |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight |
| Reverse Service | No |
| Grounding | Grounded |
| Current Rating | 60 A |
| Connection Orientation | Straight |
| Overall Length | 12.22 in |
| Market | Industrial |
| Wire Connection Type | Screw Terminals |
| Minimum Wire Size | 8 AWG |
| IP Rating | IP69K, IP68 |
| NEMA Enclosure Rating | 4X |
| Shrouded | Yes |
| For Maximum Cable Diameter | 1.45 in |
| Cap Type | Spring-Loaded Cap |
| Maximum Operating Temperature | 75 deg C |
| Minimum Operating Temperature | -40 deg C |
| UL 94 Flammability Rating | V-0 |
| Voltage Rating | 480V AC |
| Power Indicating Light | Yes |
| Contact Material | Copper |
| For Environment | Wet |
| Housing Material | PBT |
| Housing Color | Red |
| Maximum Wire Size | 2 AWG |
| Housing Material Grade | Valox 357 |
| Type | Connector |
| Current / Amperage Rating | 60 A |
| Voltage Rating Description | 480 VAC |
| Style | IP69k NEMA 4X |
| Amperage Rating | 60 A |
| Series | Advantage Switch-Rated |
| Package Quantity | 1 |
