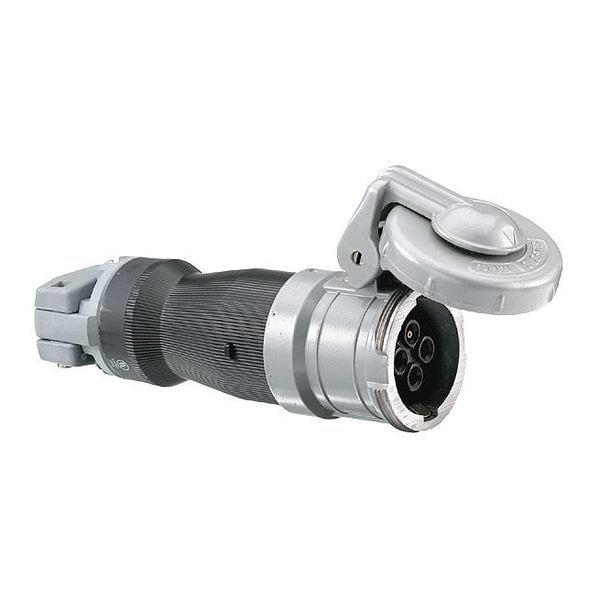

Pin and Sleeve Connector, 30A, 600VAC
| Item - Plugs and Receptacles | Sleeve Connector, Watertight Pin |
|---|---|
| Body Material - Pin and Sleeve | Valox 357 Housing and Aluminum Shroud |
| Amps - Plugs and Receptacles | 30 |
| Voltage - Plugs and Receptacles | 600V AC/250V DC |
| Color - Plugs and Receptacles | Gray |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase - Electrical | 3 |
| Switch Rated | No |
| Grounding Style | Style 1 |
| Features | Pin Chamber Confines Arcing within the Interior Chamber, Spring-Loaded, Gasketed Cover for Dust-Tight Seal, Watertight Neoprene Sealing Glands for Reliable Seal |
| Phase | Three |
| NEMA Rating | 4x |
| Color | Gray |
| Body Material | Valox 357 Housing and Epoxy Painted Aluminum Shroud |
| Amps | 30 |
| Item | Watertight Pin and Sleeve Connector |
| Voltage | 600VAC/250VDC |
| Standards | CSA Certified C22.2 No. 182.1, UL 1682, UL Listed and CSA Certified Type 4X |
| Material | Composite |
| Application | Metallic with Nylon Shroud |
| Overall Length | 8.38 in |
| Outside Diameter | 3.74 in |
| Connection Orientation | Straight |
| UL 94 Flammability Rating | V-0 |
| Power Indicating Light | No |
| Market | Industrial |
| Cap Type | Spring-Loaded Cap |
| Minimum Wire Size | 10 AWG |
| Voltage Rating | 250V DC, 600V AC |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Current Rating | 30 A |
| Shrouded | Yes |
| Reverse Service | No |
| Maximum Wire Size | 8 AWG |
| Minimum Operating Temperature | -40 Degrees C |
| Housing Color | Black, Gray |
| IP Rating | IP69K, IP68 |
| Housing Material | Thermoplastic |
| Maximum Operating Temperature | 75 Degrees C |
| Wire Connection Type | Screw Terminals |
| NEMA Enclosure Rating | 4X |
| Grounding | Grounded |
| Compatible with Series | UL 1686 Class 1 Insulgrip(R) |
| For Minimum Cable Diameter | 3/8 in |
| For Maximum Cable Diameter | 1.2 in |
| Housing Material Grade | Valox 357 |
| Type | Watertight Connector |
| Series | UL 1686 Class 1 Insulgrip® |
| Item Type | Standard |
| Voltage Rating Description | 600V AC/250V DC |
| Insulation | Insulated Body |
| Number Of Conductors | 4-Wire Grounding |
| Environmental Conditions | Watertight |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Style | Standard Service,Style 1 Grounding |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17 Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94 Environmental - Operating Temperatures - Max. Continuous 75°C Min. -40°C w/o impact -25° with impact Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682 Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green) |
| Amperage Rating | 30 A |
| Display Size | Standard |
| Connectivity | Pressure Terminal Screws |
| Industry Standard(s) | CSA Certified to CSA Spec. C22.2 No. 182.1 UL Listed and CSA Certified Type 4X UL Standard 1682 |
| Current / Amperage Rating | 30 A |
| Material - Mounting Hardware | Cord Mounted |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Conductor Range | #10 AWG to #8AWG |
| Package Quantity | 1 |
